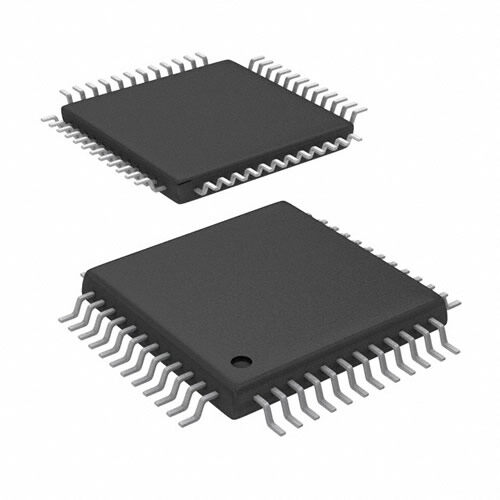

ADS5204IPFBG4
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
Bipolar GULL WING QUAD Not Qualified Analog to Digital Converter 0.1465% 85C 1V 275mW
PDF
/
Inventory: 6691
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Package / Case TQFP
Surface Mount YES
Number of Pins 48
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 48
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Other Converters
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 48
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Polarity Bipolar
Temperature Grade INDUSTRIAL
Interface Parallel, SPI, Serial
Max Supply Voltage 3.6V
Min Supply Voltage 3V
Power Dissipation-Max 345mW
Nominal Supply Current 64mA
Power Dissipation 275mW
Number of Bits 10
Number of Inputs 2
Converter Type ADC, PROPRIETARY METHOD
Supply Type Analog, Digital
Resolution 1.25 B
Sampling Rate 40 Msps
Number of Analog In Channels 2
Power Consumption 275mW
Linearity Error-Max (EL) 0.1465%
Integral Nonlinearity (INL) 1.5 LSB
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 40 Msps
Analog Input Voltage-Max 1V
Output Format PARALLEL, WORD
Signal to Noise Ratio (SNR) 60.5 dB
Max Supply Voltage (DC) 3.6V
Min Supply Voltage (DC) 3V
Analog Input Voltage-Min -1V
Spurious-free dynamic range (SFDR) 73 dB
Dimensions
Length 7mm
Width 7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
