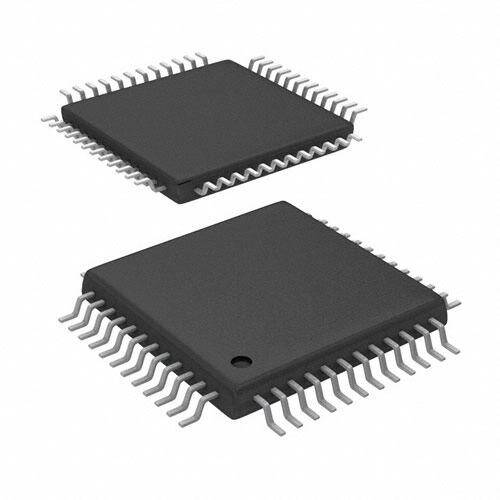

ADS5103IPFBG4
RoHS
/
Package TQFP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
IC ADC 10BIT ANLG-SPLY 48-TQFP
PDF
/
Inventory: 4520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case TQFP
Surface Mount YES
Number of Pins 48
Technical
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 2
Number of Terminations 48
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Pin Count 48
Operating Supply Voltage 1.8V
Number of Elements 1
Polarity Bipolar
Temperature Grade INDUSTRIAL
Interface Parallel, SPI, Serial
Max Supply Voltage 2V
Min Supply Voltage 1.65V
Power Dissipation-Max 126mW
Nominal Supply Current 45mA
Power Dissipation 126mW
Number of Bits 10
Converter Type ADC, PROPRIETARY METHOD
Supply Type Analog, Digital
Resolution 1.25 B
Sampling Rate 40 Msps
Number of Analog In Channels 1
Output Bit Code OFFSET BINARY
Power Consumption 105mW
Integral Nonlinearity (INL) 1.5 LSB
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 40 Msps
Output Format PARALLEL, WORD
Signal to Noise Ratio (SNR) 59 dB
Max Supply Voltage (DC) 2V
Min Supply Voltage (DC) 1.65V
Analog Input Voltage-Min 0.78V
Spurious-free dynamic range (SFDR) 69 dB
Dimensions
Length 7mm
Width 7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
