ADC12DJ2700AAV
RoHS
RoHS compliant

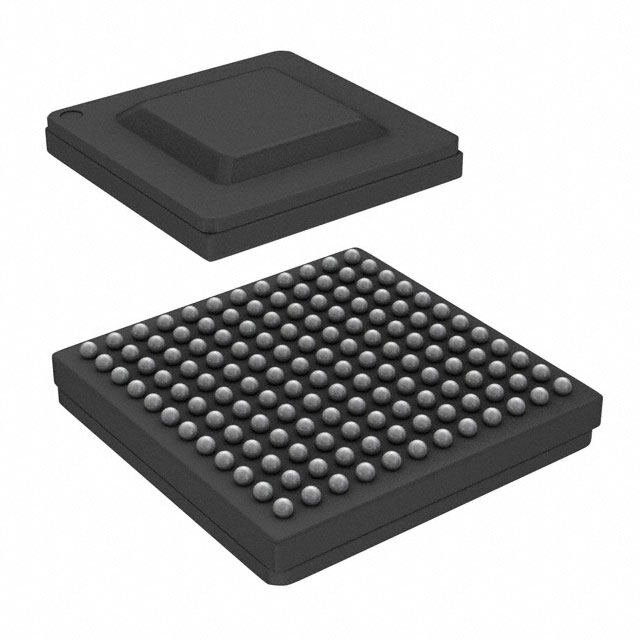

RoHS compliantPackage 144-FBGA, FCBGA
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
144-FBGA FCBGA ADC12DJ2700 ACTIVE (Last Updated: 3days ago) Simultaneous Sampling analog digital converter 1.45mm 950mA 2.7G 5.4G 6Weeks
PDF
/
Buying Options
Total Price: USD $1724.8
Unit Price: USD $1724.8
≥1 USD $1724.8
Inventory: 68
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case 144-FBGA, FCBGA
Surface Mount YES
Number of Pins 144
Technical
Operating Temperature -40°C~85°C
Packaging Tray
JESD-609 Code e1
Feature Simultaneous Sampling
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
ECCN Code 3A001A5A3
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.1V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number ADC12DJ2700
Configuration MUX-ADC
Number of Bits 12
Supply Current-Max 950mA
Input Type Differential, Single Ended
Architecture Folding Interpolating
Number of Inputs 1, 2
Converter Type ADC, PROPRIETARY METHOD
Reference Type Internal
Data Interface JESD204B
Voltage - Supply, Analog 1.05V~1.15V 1.8V~2V
Voltage - Supply, Digital 1.05V~1.15V
Number of Analog In Channels 2
Sampling Rate (Per Second) 2.7G, 5.4G
Number of A/D Converters 2
Analog Input Voltage-Max 1.04V
Output Format SERIAL, PARALLEL, WORD
Analog Input Voltage-Min -1.04V
Dimensions
Height 1.94mm
Length 10mm
Width 10mm
Thickness 1.45mm
Compliance
RoHS Status ROHS3 Compliant
