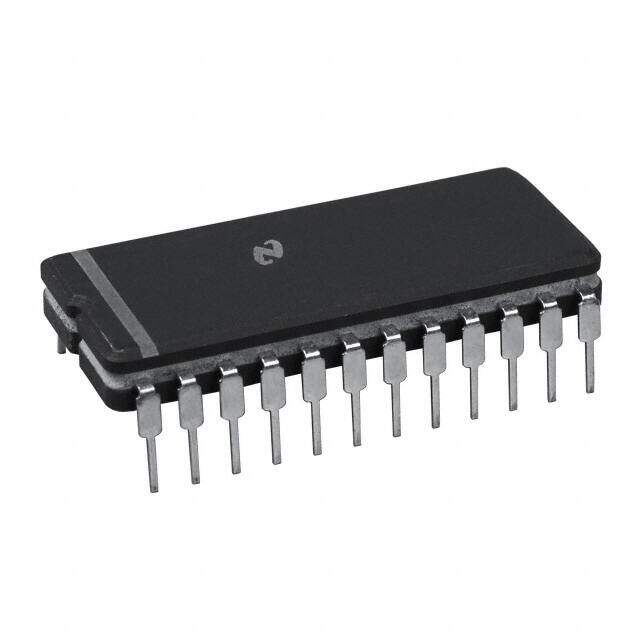

ADC12451CIJ
RoHS
/
Package 24-CDIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
External SAR CMOS Analog Digital Dual analog digital converter -40C~85C 5.55V 113mW 83ksps
PDF
/
Inventory: 7450
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-CDIP (0.600, 15.24mm)
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
ECCN Code EAR99
Max Power Dissipation 113mW
Technology CMOS
Number of Functions 1
Supply Voltage 5V
Base Part Number ADC12451
Pin Count 24
Configuration S/H-ADC
Number of Bits 12
Input Type Single Ended
Architecture SAR
Number of Inputs 1
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Analog, Digital, Dual
Reference Type External
Data Interface Parallel
Sampling Rate 83 ksps
Voltage - Supply, Analog ±5V
Voltage - Supply, Digital 5V
Number of Analog In Channels 1
Sample and Hold / Track and Hold SAMPLE
Number of Converters 2
Ratio - S/H:ADC 1:1
Analog Input Voltage-Max 5.55V
Negative Supply Voltage-Nom -5V
Analog Input Voltage-Min -5.55V
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
