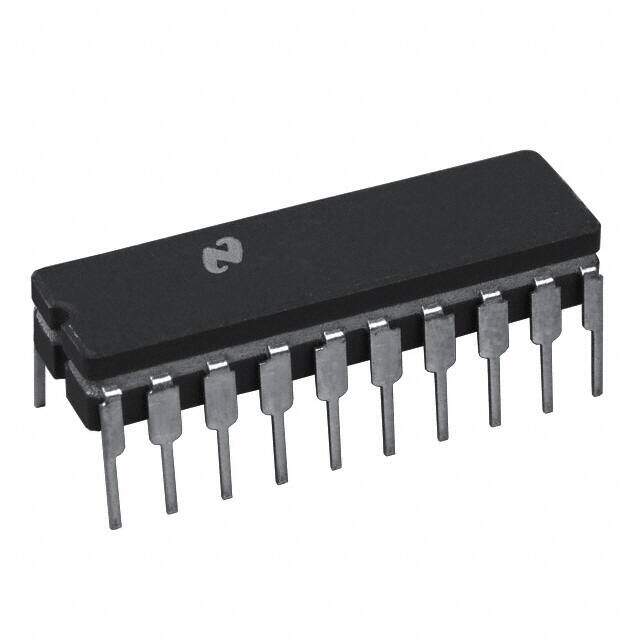

ADC1005CCJ-1
RoHS
/
Package 20-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
20-CDIP (0.300 7.62mm) ADC1005 Parallel Tube analog digital converter 50mus 5V -40C~85C 0.0977%
PDF
/
Buying Options
Total Price: USD $0.03
Unit Price: USD $0.0285
≥1 USD $0.0285
≥10 USD $0.0228
≥100 USD $0.0228
≥500 USD $0.02185
≥1000 USD $0.0209
Inventory: 1185
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Conversion Time-Max 50μs
Analog Input Voltage-Max 5V
Linearity Error-Max (EL) 0.0977%
Output Bit Code BINARY
Number of Analog In Channels 1
Voltage - Supply, Digital 4.5V~6V
Voltage - Supply, Analog 4.5V~6V
Data Interface SPI
Reference Type External
Supply Type Single
Number of Inputs 1
Architecture SAR
Input Type Differential
Number of Bits 10
Interface Parallel
Configuration ADC
JESD-30 Code R-CDIP-T20
Pin Count 20
Base Part Number ADC1005
Reach Compliance Code unknown
Supply Voltage 5V
Number of Functions 1
Terminal Position DUAL
Technology CMOS
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 20-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
