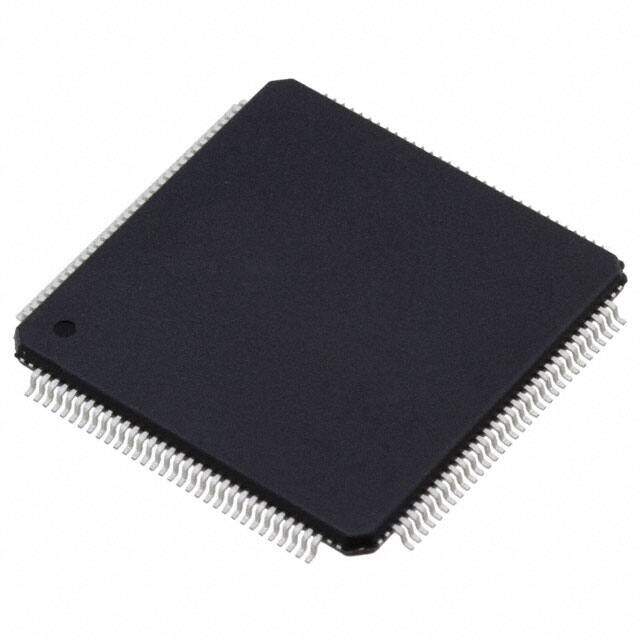

ADC08D500CIYB
RoHS
/
Package 128-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
128-LQFP Exposed Pad ADC08D500 LVDS Parallel Simultaneous Sampling analog digital converter 1.6mm 500Msps 1.4W 0.95V
PDF
/
Buying Options
Total Price: USD $127.61
Unit Price: USD $127.61255
≥1 USD $127.61255
≥10 USD $123.35845
≥100 USD $110.5971
Inventory: 1164
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 128-LQFP Exposed Pad
Number of Pins 128
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Simultaneous Sampling
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 128
ECCN Code 3A991.C.1
Subcategory Analog to Digital Converters
Max Power Dissipation 2W
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Number of Functions 1
Supply Voltage 1.9V
Terminal Pitch 0.5mm
Base Part Number ADC08D500
Pin Count 128
Operating Supply Voltage 1.9V
Polarity Bipolar
Configuration MUX-S/H-ADC
Number of Channels 2
Interface LVDS, Parallel
Max Supply Voltage 2V
Min Supply Voltage 1.8V
Power Dissipation 1.4W
Number of Bits 8
Input Type Differential
Architecture Folding Interpolating
Converter Type ADC, PROPRIETARY METHOD
Supply Type Single
Reference Type Internal
Data Interface LVDS - Parallel
Resolution 1 B
Sampling Rate 500 Msps
Voltage - Supply, Analog 1.8V~2V
Voltage - Supply, Digital 1.8V~2V
Number of Analog In Channels 2
Sampling Rate (Per Second) 500M
Output Bit Code OFFSET BINARY
Power Consumption 1.4W
Linearity Error-Max (EL) 0.3516%
Integral Nonlinearity (INL) 0.9 LSB
Sample and Hold / Track and Hold SAMPLE
Conversion Rate 500 Msps
Analog Input Voltage-Min -0.95V
Differential Nonlinearity 0.6 LSB
Signal to Noise Ratio (SNR) 48 dB
Analog Input Voltage-Max 0.95V
Ratio - S/H:ADC 1:1
