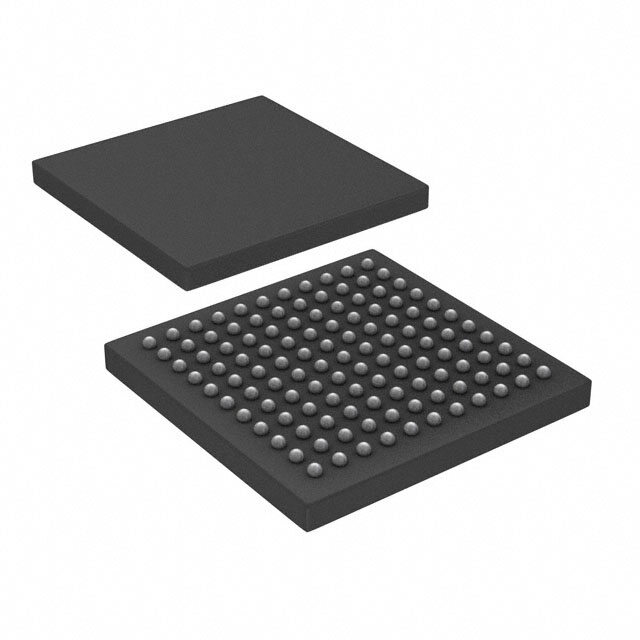

MCP37221-200I/TE image
Favorite
MCP37221-200I/TE image
Favorite

MCP37221-200I/TE

Microchip Technology
RoHS
RoHS RoHS compliant
Package 121-TFBGA
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description 121-TFBGA MCP37221 Tray ADC FLASH METHOD analog digital converter 8mm 200MHz 0.005mus 1.2V
PDF
/
Inventory: 3087
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 8mm
Length 8mm

Technical

Conversion Time-Max 0.005μs
Output Format SERIAL, PARALLEL, WORD
Number of A/D Converters 1
Sample and Hold / Track and Hold SAMPLE
Output Bit Code OFFSET BINARY, 2'S COMPLEMENT BINARY
Sampling Rate (Per Second) 200M
Number of Analog In Channels 8
Voltage - Supply, Digital 1.14V~1.26V 1.71V~1.89V
Voltage - Supply, Analog 1.14V~1.26V 1.71V~1.89V
Sampling Rate 200 MHz
Data Interface LVDS - Parallel, Parallel
Reference Type Internal
Converter Type ADC, FLASH METHOD
Number of Inputs 1, 2, 4, 8
Architecture Pipelined
Input Type Differential
Number of Bits 14
Configuration MUX-ADC
Base Part Number MCP37221
Terminal Pitch 0.65mm
Supply Voltage 1.2V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 121
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Surface Mount YES
Package / Case 121-TFBGA
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
