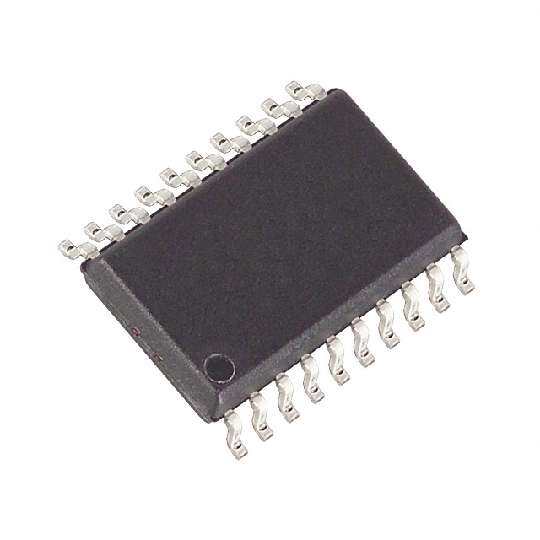

MAX188BCWP+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
SOIC SPI Serial Matte Tin (Sn) Tape & Reel (TR) analog digital converter 2.65mm 2.5mA 133ksps 640mW
PDF
/
Inventory: 9187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Height Seated (Max) 2.65mm
Technical
Analog Input Voltage-Min -2.048V
Negative Supply Voltage-Nom -5V
Analog Input Voltage-Max 2.048V
Conversion Rate 133 ksps
Number of Converters 1
Sample and Hold / Track and Hold TRACK
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Number of Analog In Channels 8
Sampling Rate 133 ksps
Resolution 1.5 B
Supply Type Dual
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Current-Max 2.5mA
Number of Bits 12
Power Dissipation-Max 640mW
Interface SPI, Serial
Temperature Grade COMMERCIAL
Polarity Bipolar, Unipolar
Operating Supply Voltage 5V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G20
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Technology CMOS
Subcategory Analog to Digital Converters
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 20
Pbfree Code yes
JESD-609 Code e3
Published 2012
Packaging Tape & Reel (TR)
Physical
Package / Case SOIC
Mount Surface Mount
