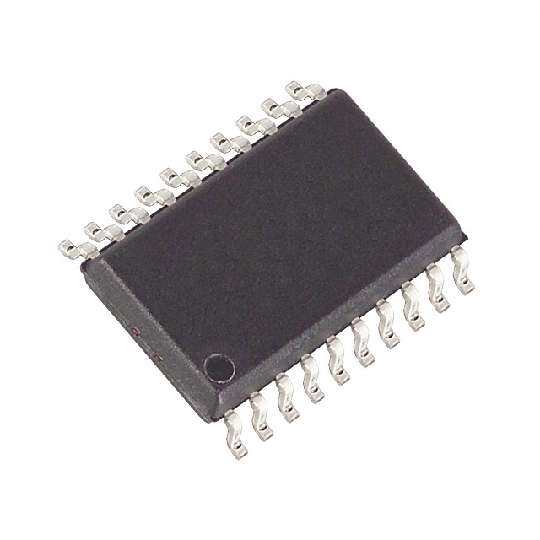

MAX166DCWP+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
SOIC Parallel Matte Tin (Sn) Tape & Reel (TR) analog digital converter 2.65mm 6mA 200ksps 800mW
PDF
/
Inventory: 6577
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Technical
Packaging Tape & Reel (TR)
Published 2003
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 20
JESD-30 Code R-PDSO-G20
Qualification Status Not Qualified
Operating Supply Voltage 5V
Polarity Unipolar
Power Supplies 5V
Temperature Grade COMMERCIAL
Interface Parallel
Power Dissipation-Max 800mW
Number of Bits 8
Supply Current-Max 6mA
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Single
Resolution 1 B
Sampling Rate 200 ksps
Number of Analog In Channels 1
Output Bit Code BINARY, OFFSET BINARY
Linearity Error-Max (EL) 0.39%
Sample and Hold / Track and Hold TRACK
Conversion Rate 200 ksps
Signal to Noise Ratio (SNR) 45 dB
Number of Analog Inputs 1
Dimensions
Height Seated (Max) 2.65mm
Width 7.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
