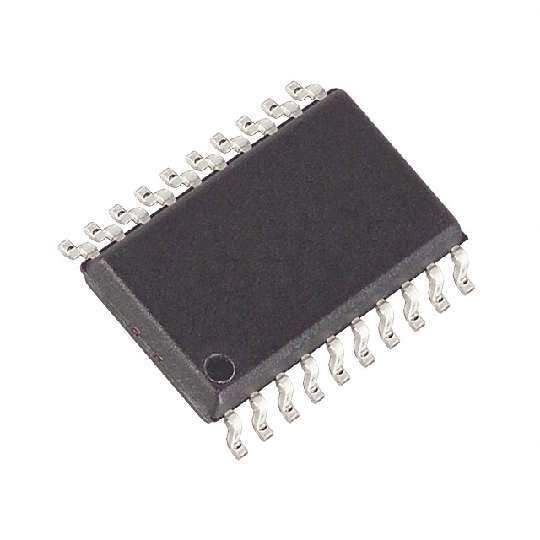

MAX166BCWP+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
SOIC Parallel Matte Tin (Sn) Tape & Reel (TR) analog digital converter 2.65mm 6mA 200ksps 800mW
PDF
/
Inventory: 9104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Height Seated (Max) 2.65mm
Technical
Number of Analog Inputs 1
Signal to Noise Ratio (SNR) 45 dB
Conversion Rate 200 ksps
Sample and Hold / Track and Hold TRACK
Linearity Error-Max (EL) 0.39%
Output Bit Code BINARY, OFFSET BINARY
Number of Analog In Channels 1
Sampling Rate 200 ksps
Resolution 1 B
Supply Type Single
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Current-Max 6mA
Number of Bits 8
Power Dissipation-Max 800mW
Interface Parallel
Temperature Grade COMMERCIAL
Power Supplies 5V
Polarity Unipolar
Operating Supply Voltage 5V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G20
Pin Count 20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Subcategory Analog to Digital Converters
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 20
Pbfree Code yes
JESD-609 Code e3
Published 2003
Packaging Tape & Reel (TR)
Physical
Package / Case SOIC
Mount Surface Mount
