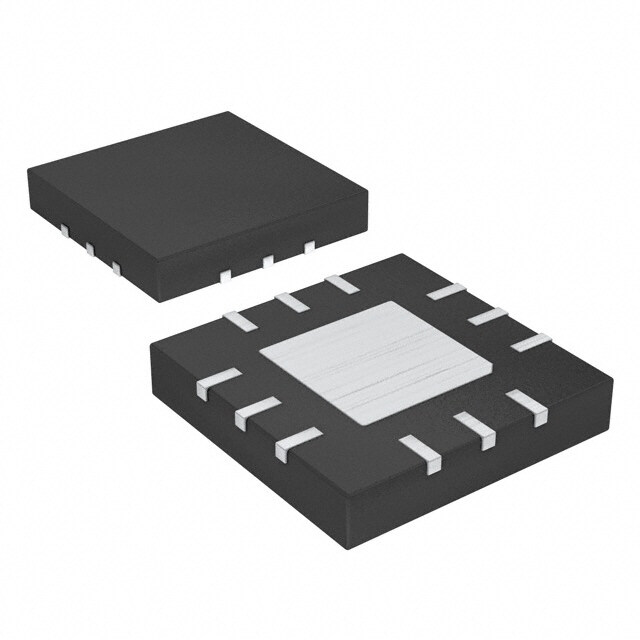

MAX1279AETC+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
Matte Tin (Sn) Tape & Reel (TR) INDUSTRIAL ADC SUCCESSIVE APPROXIMATION analog digital converter 4mm 1.5MHz 0.667mus 1.029V
PDF
/
Inventory: 1419
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.8mm
Technical
Conversion Time-Max 0.667μs
Analog Input Voltage-Min -1.019V
Output Format SERIAL
Analog Input Voltage-Max 1.029V
Sample and Hold / Track and Hold TRACK
Linearity Error-Max (EL) 0.0244%
Output Bit Code 2'S COMPLEMENT BINARY
Number of Analog In Channels 1
Sampling Rate 1.5 MHz
Converter Type ADC, SUCCESSIVE APPROXIMATION
Number of Bits 12
Temperature Grade INDUSTRIAL
Power Supplies 3/3.3V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
Pin Count 12
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code compliant
Terminal Pitch 0.8mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology BICMOS
Subcategory Analog to Digital Converters
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2009
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
