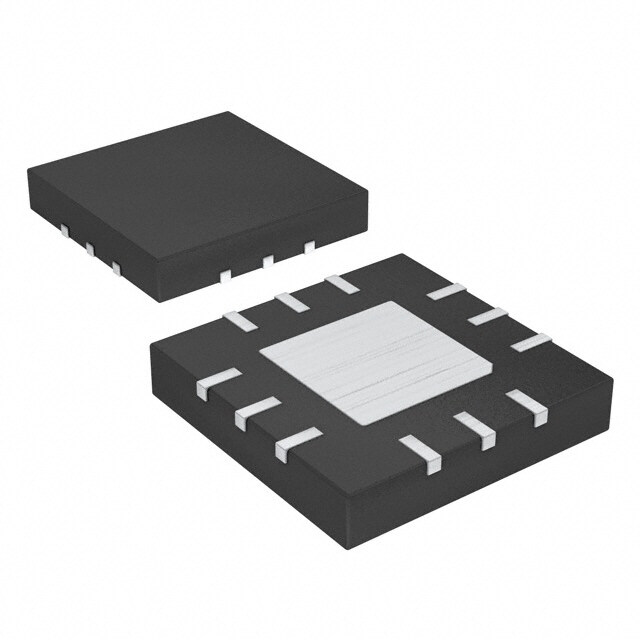

MAX1277AETC+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
SPI Serial Matte Tin (Sn) Tape & Reel (TR) INDUSTRIAL analog digital converter 4mm 1.5Msps 1.35W 2009
PDF
/
Inventory: 9511
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.8mm
Technical
Number of Analog Inputs 1
Analog Input Voltage-Max 2.058V
Conversion Rate 1.5 Msps
Sample and Hold / Track and Hold TRACK
Linearity Error-Max (EL) 0.0244%
Output Bit Code BINARY
Number of Analog In Channels 1
Sampling Rate 1.5 Msps
Resolution 1.5 B
Supply Type Analog, Digital
Converter Type ADC, SUCCESSIVE APPROXIMATION
Number of Bits 12
Power Dissipation-Max 1.35W
Interface SPI, Serial
Temperature Grade INDUSTRIAL
Power Supplies 3/3.3V
Polarity Unipolar
Operating Supply Voltage 3.6V
Pin Count 12
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.8mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Technology BICMOS
Subcategory Analog to Digital Converters
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2009
Packaging Tape & Reel (TR)
Physical
Number of Pins 12
Mount Surface Mount
