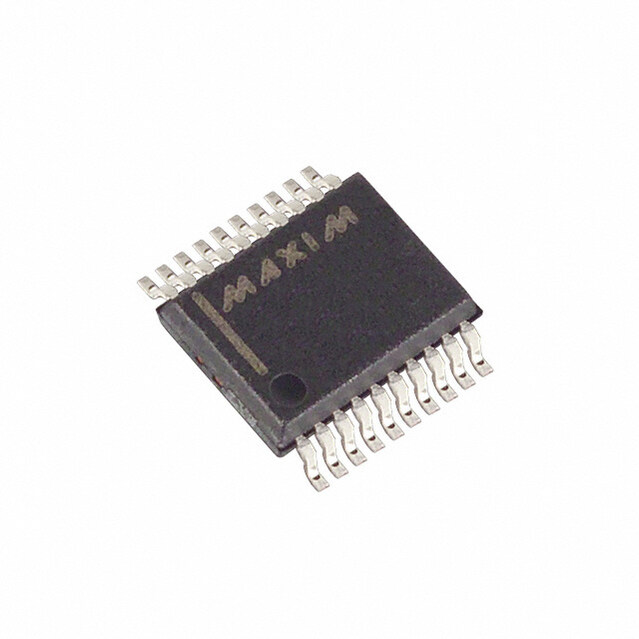

MAX121EAP+T
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
SSOP SPI Serial Matte Tin (Sn) Tape & Reel (TR) analog digital converter 2mm 308ksps 315mW 2012
PDF
/
Inventory: 5416
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 5.3mm
Length 7.2mm
Height Seated (Max) 2mm
Technical
Number of Analog Inputs 1
Negative Supply Voltage-Nom -15V
Signal to Noise Ratio (SNR) 78 dB
Analog Input Voltage-Max 5V
Conversion Rate 308 ksps
Sample and Hold / Track and Hold TRACK
Output Bit Code 2'S COMPLEMENT BINARY
Number of Analog In Channels 1
Sampling Rate 308 ksps
Resolution 1.75 B
Supply Type Dual
Converter Type ADC, SUCCESSIVE APPROXIMATION
Number of Bits 14
Power Dissipation-Max 315mW
Interface SPI, Serial
Temperature Grade INDUSTRIAL
Polarity Bipolar
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 20
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Technology BICMOS
Subcategory Analog to Digital Converters
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2012
Packaging Tape & Reel (TR)
Physical
Number of Pins 20
Package / Case SSOP
Mount Surface Mount
