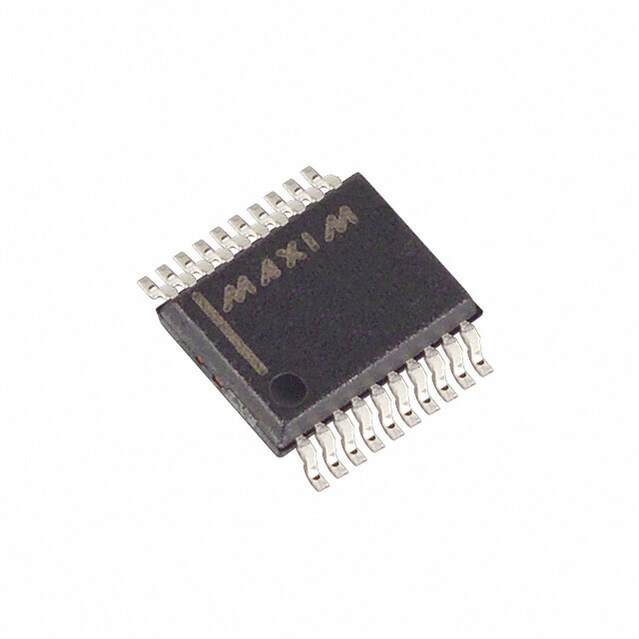

MAX1203BEAP+T image
Favorite
MAX1203BEAP+T image
Favorite

MAX1203BEAP+T

Maxim Integrated
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description SSOP SPI Serial Matte Tin (Sn) Tape & Reel (TR) analog digital converter 7.2mm 133ksps 7.5mW 111Weeks
PDF
/
Inventory: 9698
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 111 Weeks

Physical

Mount Surface Mount
Package / Case SSOP
Number of Pins 20

Technical

Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Analog to Digital Converters
Technology CMOS
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 20
Qualification Status Not Qualified
Operating Supply Voltage 5.25V
Polarity Bipolar, Unipolar
Power Supplies 3/55GND/-5V
Temperature Grade INDUSTRIAL
Interface SPI, Serial
Power Dissipation-Max 7.5mW
Number of Bits 12
Converter Type ADC, SUCCESSIVE APPROXIMATION
Supply Type Dual
Resolution 1.5 B
Sampling Rate 133 ksps
Number of Analog In Channels 8
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Linearity Error-Max (EL) 0.0244%
Sample and Hold / Track and Hold TRACK
Number of Converters 1
Conversion Rate 133 ksps
Analog Input Voltage-Max 2.048V
Signal to Noise Ratio (SNR) 71 dB
Negative Supply Voltage-Nom -5V
Analog Input Voltage-Min -2.048V

Dimensions

Length 7.2mm
Width 5.29mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
