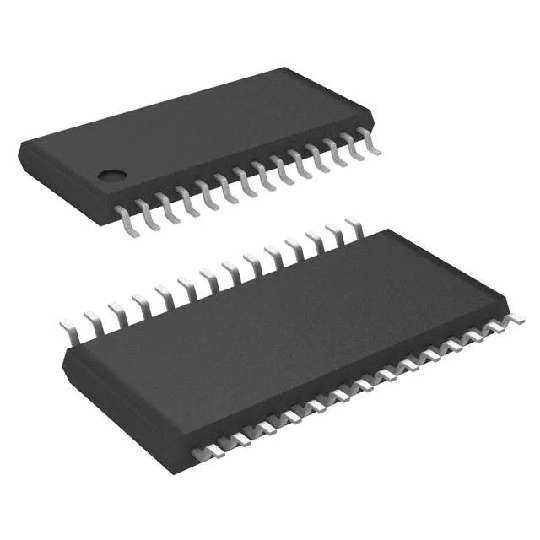

MAX1187CCUI+
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
Unipolar GULL WING DUAL Not Qualified analog digital converter 70C 5.25V 111Weeks 20mW
PDF
/
Inventory: 7263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4.4mm
Length 9.7mm
Technical
Number of Analog Inputs 1
Signal to Noise Ratio (SNR) 91 dB
Conversion Rate 135 ksps
Sample and Hold / Track and Hold TRACK
Output Bit Code BINARY
Number of Analog In Channels 1
Sampling Rate 135 ksps
Resolution 2 B
Supply Type Analog, Digital
Converter Type ADC, SUCCESSIVE APPROXIMATION
Number of Bits 16
Power Dissipation-Max 20mW
Interface Parallel
Temperature Grade COMMERCIAL
Power Supplies 5V
Polarity Unipolar
Operating Supply Voltage 5.25V
Qualification Status Not Qualified
Pin Count 28
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Analog to Digital Converters
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2003
Physical
Number of Pins 28
Package / Case TSSOP
Mount Surface Mount
Supply Chain
Factory Lead Time 111 Weeks
