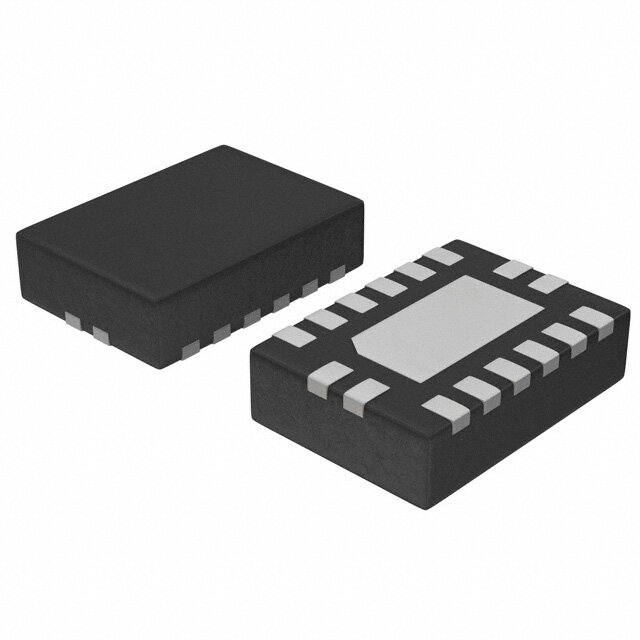

MAX11192ATE+
RoHS
RoHS compliant
RoHS compliantPackage 16-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Data Acquisition - Analog to Digital Converters (ADC)
Description
16-WFQFN Exposed Pad MAX11192 Simultaneous Sampling Tube analog digital converter 3mm 2M 5.15V -40C~125C
PDF
/
Inventory: 1599
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tube
Feature Simultaneous Sampling
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MAX11192
JESD-30 Code R-XQCC-N16
Configuration S/H-ADC
Number of Bits 12
Input Type Differential
Architecture SAR
Number of Inputs 2
Converter Type ADC, SUCCESSIVE APPROXIMATION
Reference Type External
Data Interface SPI
Voltage - Supply, Analog 3V~5.25V
Number of Analog In Channels 2
Sampling Rate (Per Second) 2M
Output Bit Code BINARY
Ratio - S/H:ADC 1:1
Analog Input Voltage-Max 5.15V
Output Format SERIAL
Dimensions
Height Seated (Max) 0.8mm
Length 3mm
Compliance
RoHS Status ROHS3 Compliant
