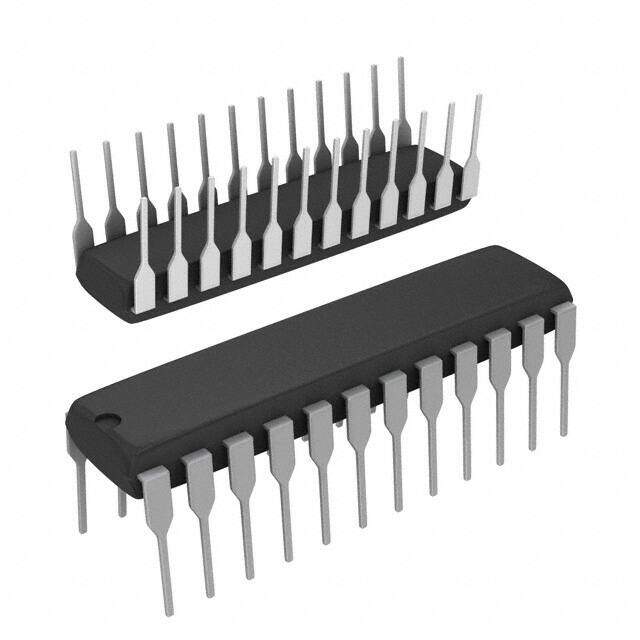

TC510CPF image
Favorite
TC510CPF image
Favorite
RoHS
RoHS RoHS compliant
Package 24-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Data Acquisition - Analog Front End (AFE)
Description TC510 24-DIP (0.300 7.62mm) Serial CMOS analog front end circuit 5.5V 70C 18mW 4.06mm
PDF
/
Inventory: 978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Package / Case 24-DIP (0.300, 7.62mm)
Number of Pins 24

Technical

Packaging Tube
Published 2004
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Other Analog ICs
Power Rating 18mW
Max Power Dissipation 18mW
Technology CMOS
Terminal Position DUAL
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 2.54mm
Base Part Number TC510
Pin Count 24
Output Voltage 900mV
Operating Supply Voltage 5V
Power Supplies 5V
Temperature Grade COMMERCIAL
Number of Channels 1
Interface Serial
Max Supply Voltage 5.5V
Min Supply Voltage 4.5V
Analog IC - Other Type ANALOG CIRCUIT
Operating Supply Current 1.8mA
Nominal Supply Current 1.8mA
Number of Bits 17
Supply Current-Max (Isup) 3.5mA
Resolution 2.125 B

Dimensions

Height Seated (Max) 4.06mm
Width 7.62mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
