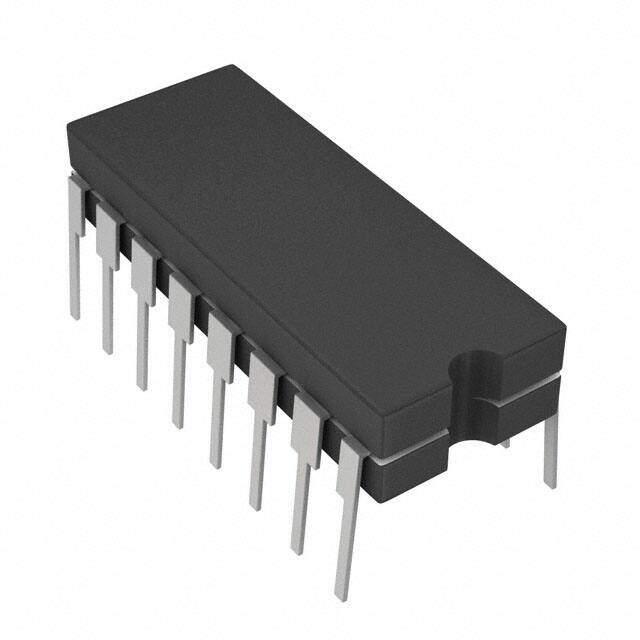

TC500IJE
RoHS
RoHS compliant
RoHS compliantPackage 16-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / Data Acquisition - Analog Front End (AFE)
Description
TC500 16-CDIP (0.300 7.62mm) Serial ANALOG CIRCUIT analog front end ic ±4.5V~7.5V 85C 10mW 2.54mm
PDF
/
Inventory: 1671
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Voltage - Supply, Digital ±4.5V~7.5V
Voltage - Supply, Analog ±4.5V~7.5V
Neg Supply Voltage-Nom (Vsup) -5V
Resolution 2 B
Supply Current-Max (Isup) 2.5mA
Number of Bits 16
Nominal Supply Current 1mA
Analog IC - Other Type ANALOG CIRCUIT
Min Supply Voltage 4.5V
Interface Serial
Number of Channels 1
Temperature Grade OTHER
Operating Supply Voltage 5V
Output Voltage 900mV
Qualification Status Not Qualified
Pin Count 16
Base Part Number TC500
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Supply Voltage 5V
Terminal Position DUAL
Max Power Dissipation 10mW
Power Rating 10mW
Subcategory Other Analog ICs
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Published 2004
Packaging Tube
Physical
Package / Case 16-CDIP (0.300, 7.62mm)
Mount Through Hole
