PCM1850PJTR
RoHS
RoHS compliant

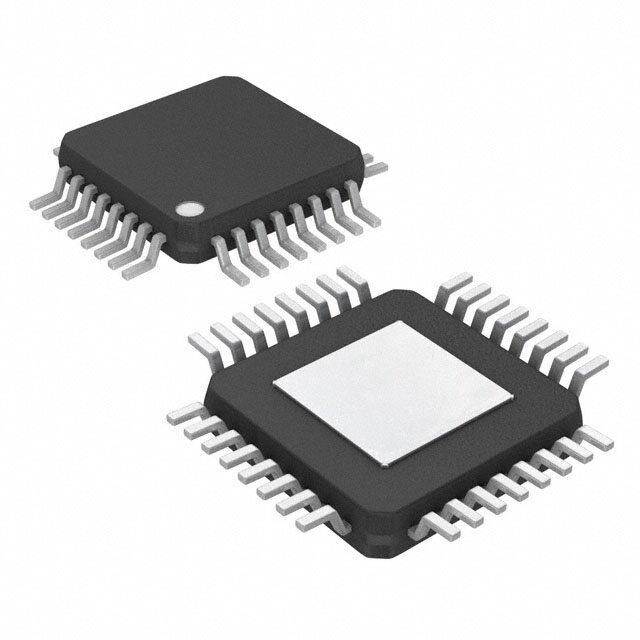

RoHS compliantPackage 32-TQFP
Category Integrated Circuits (ICs) / Data Acquisition - ADCs/DACs - Special Purpose
Description
IC ADC 24BIT 96KHZ 6X2MUX 32TQFP
PDF
/
Buying Options
Total Price: USD $3.39
Unit Price: USD $3.3877
≥1 USD $3.3877
≥10 USD $2.7797
≥100 USD $2.69325
≥500 USD $2.60585
≥1000 USD $2.5194
Inventory: 26792
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 7mm
Length 7mm
Technical
Number of Analog Inputs 12
Resolution (Bits) 24 b
Signal to Noise Ratio (SNR) 104 dB
Voltage Supply Source Analog Digital
Conversion Rate 96 ksps
Power Consumption 180mW
Sampling Rate (Per Second) 96k
Number of Analog In Channels 2
Sampling Rate 96 ksps
Data Interface SPI
Supply Type Analog, Digital
Number of Bits 24
Interface SPI, Serial
Number of Channels 2
Polarity Bipolar
Operating Supply Voltage 5V
Pin Count 32
Base Part Number PCM1850
Terminal Pitch 0.8mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 2.7V~3.6V 4.5V~5.5V
Technology CMOS
Max Power Dissipation 208mW
Subcategory Analog to Digital Converters
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type ADC, Audio
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 32
Package / Case 32-TQFP
Mounting Type Surface Mount
Mount Surface Mount
