61802525023
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

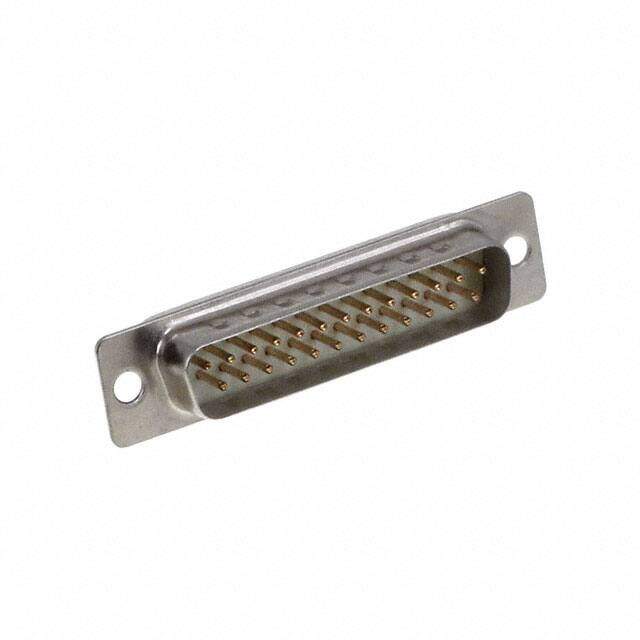

WR-DSUB MALE PCB CONNECTOR, 25 P
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
≥10 USD $3.5728
≥100 USD $3.1768
≥500 USD $2.772
≥1000 USD $2.376
≥3000 USD $2.1208
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 25
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series WR-DSUB
Feature Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 25
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color White
Number of Rows 2
Gender Male
Voltage - Rated 125VAC
Contact Type Signal
Current Rating (Amps) 3A
Pitch 2.84mm
Orientation Vertical
Depth 10.9mm
Current Rating 3A
Contact Finish Gold
Number of Contacts 25
Operating Supply Voltage 125V
Contact Resistance 30mOhm
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Dimensions
Length 53.04mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
