61802524923
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

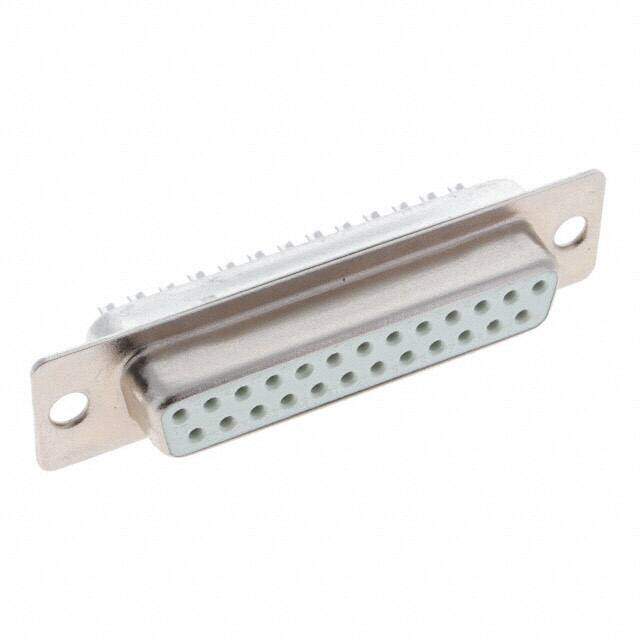

WR-DSUB FEMALE SOLDER BUCKET, 25
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.2
≥1 USD $2.2
≥10 USD $2.0856
≥100 USD $1.848
≥500 USD $1.6192
≥1000 USD $1.3816
≥3000 USD $1.232
Inventory: 132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 53.04mm
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Number of Contacts 25
Contact Finish Gold
Current Rating 3A
Depth 10.7mm
Orientation Straight
Pitch 2.84mm
Current Rating (Amps) 3A
Contact Type Signal
Voltage - Rated 125VAC
Gender Receptacle
Number of Rows 2
Color White
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-DSUB
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Steel
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 18 Weeks
