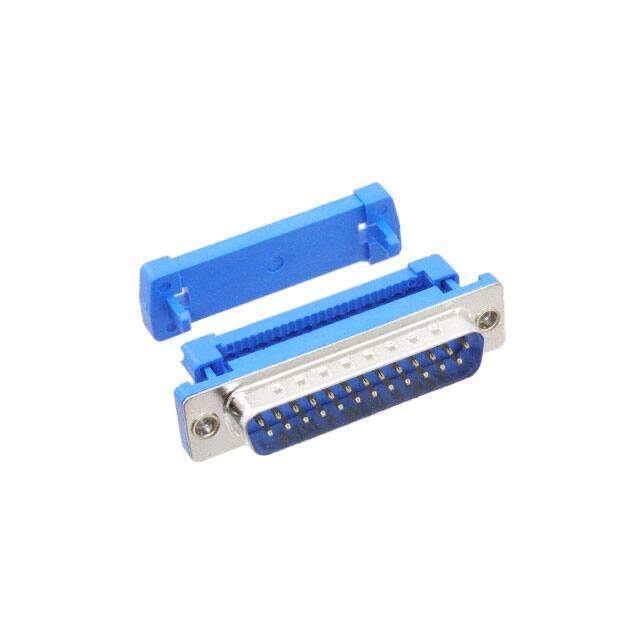

618025226221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
WR-DSUB MALE IDC CONNECTOR MALE,
PDF
/
Buying Options
Total Price: USD $8.47
Unit Price: USD $8.4744
≥1 USD $8.4744
≥10 USD $8.0432
≥100 USD $7.1456
≥500 USD $6.2304
≥1000 USD $5.3416
≥3000 USD $4.760818
Inventory: 150
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 53.1mm
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Connector Style D-Sub
Flange Feature Cable Side (4-40)
Wire Gauge 28 AWG
Number of Contacts 25
Contact Finish Gold
Current Rating 3A
Depth 17.25mm
Orientation Straight
Pitch 2.84mm
Current Rating (Amps) 3A
Contact Type Signal
Voltage - Rated 250VAC
Gender Male
Number of Rows 2
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 25
Connector Type Plug, Male Pins
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Grounding Indents, Strain Relief
Series WR-DSUB
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Steel
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
