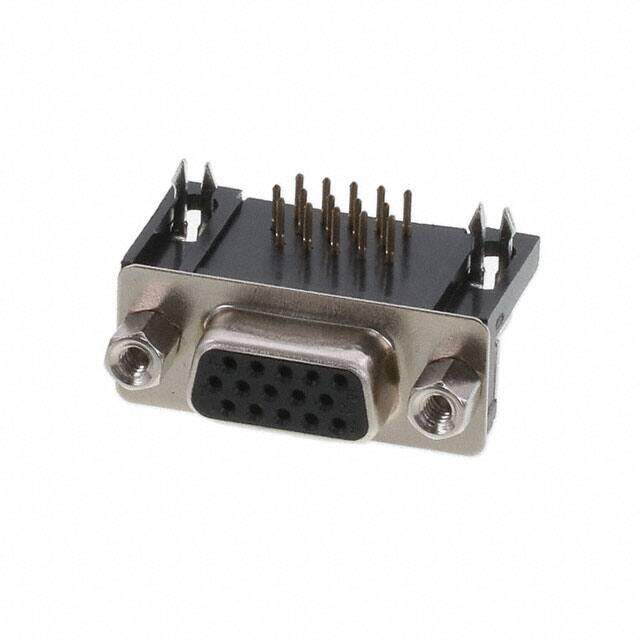

618015330923
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
WR-DSUB FEMALE HIGH DENSITY ANGL
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.1416
≥1 USD $3.1416
≥10 USD $2.9744
≥100 USD $2.6488
≥500 USD $2.3056
≥1000 USD $1.98
≥3000 USD $1.76
Inventory: 1410
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 30.8mm
Technical
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 1 DE E High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Contact Resistance 30mOhm
Operating Supply Voltage 60V
Number of Contacts 15
Contact Finish Gold
Current Rating 3A
Depth 21.1mm
Orientation Right Angle
Pitch 5.08mm
Current Rating (Amps) 3A
Contact Type Signal
Voltage - Rated 60VAC
Gender Female
Number of Rows 3
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series WR-DSUB
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material Steel
Dielectric Material Polybutylene Terephthalate (PBT)
Number of Pins 15
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 18 Weeks
