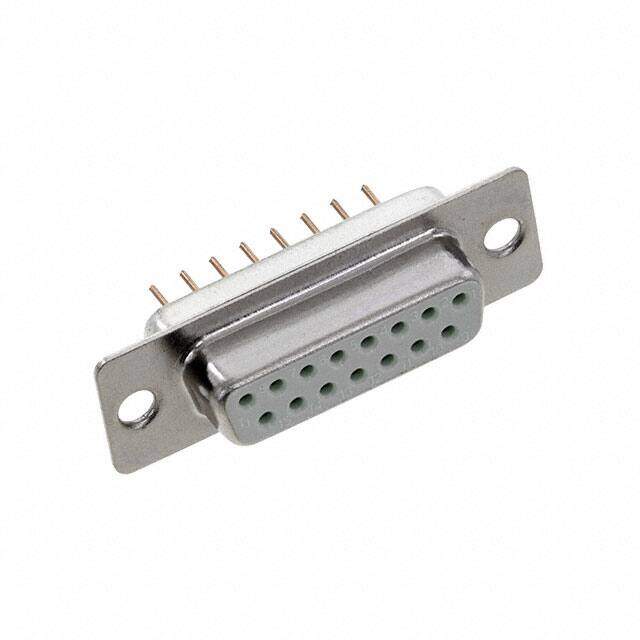

61801525123
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
WR-DSUB FEMALE PCB CONNECTOR, 15
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.1416
≥1 USD $3.1416
≥10 USD $2.9744
≥100 USD $2.6488
≥500 USD $2.3056
≥1000 USD $1.98
≥3000 USD $1.76
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 39.14mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Contact Resistance 30mOhm
Operating Supply Voltage 125V
Number of Contacts 15
Contact Finish Gold
Current Rating 3A
Depth 10.7mm
Orientation Vertical
Pitch 2.84mm
Current Rating (Amps) 3A
Contact Type Signal
Voltage - Rated 125VAC
Gender Female
Number of Rows 2
Color White
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-DSUB
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Steel
Dielectric Material Polybutylene Terephthalate (PBT)
Number of Pins 15
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 18 Weeks
