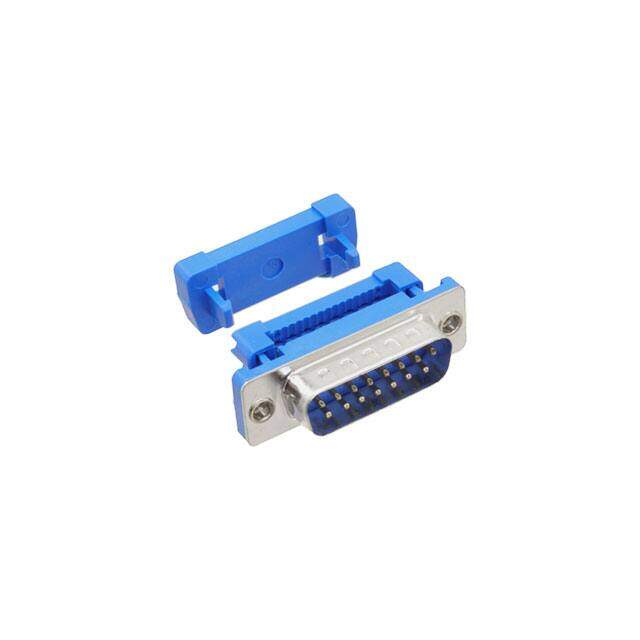

618015226221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
WR-DSUB MALE IDC CONNECTOR MALE,
PDF
/
Buying Options
Total Price: USD $7.53
Unit Price: USD $7.5328
≥1 USD $7.5328
≥10 USD $7.1456
≥100 USD $6.3536
≥500 USD $5.5352
≥1000 USD $4.752035
≥3000 USD $4.232818
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series WR-DSUB
Feature Feed Through, Grounding Indents, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
Connector Type Plug, Male Pins
Number of Positions 15
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Blue
Number of Rows 2
Gender Male
Voltage - Rated 250VAC
Contact Type Signal
Current Rating (Amps) 3A
Pitch 2.84mm
Orientation Straight
Depth 17.25mm
Current Rating 3A
Contact Finish Gold
Number of Contacts 15
Wire Gauge 28 AWG
Flange Feature Cable Side (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Dimensions
Length 39.2mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
