618009231421
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

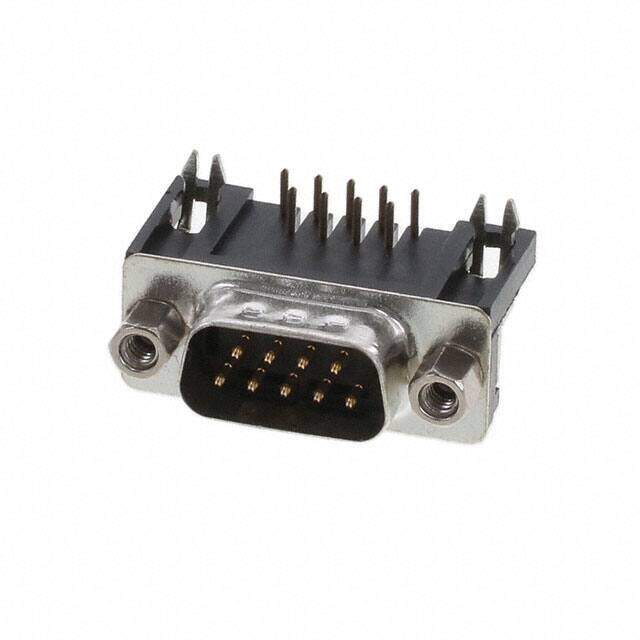

WR-DSUB MALE ANGLED PCB CONNECTO
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.1416
≥1 USD $3.1416
≥10 USD $2.9744
≥100 USD $2.6488
≥500 USD $2.3056
≥1000 USD $1.98
≥3000 USD $1.76
Inventory: 631
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 9
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material Steel
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series WR-DSUB
Feature Board Lock, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 125VAC
Contact Type Signal
Current Rating (Amps) 3A
Pitch 2.84mm
Orientation Right Angle
Depth 20.75mm
Current Rating 3A
Contact Finish Gold
Number of Contacts 9
Operating Supply Voltage 125V
Contact Resistance 30mOhm
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.402 (10.21mm)
Dimensions
Length 30.8mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
