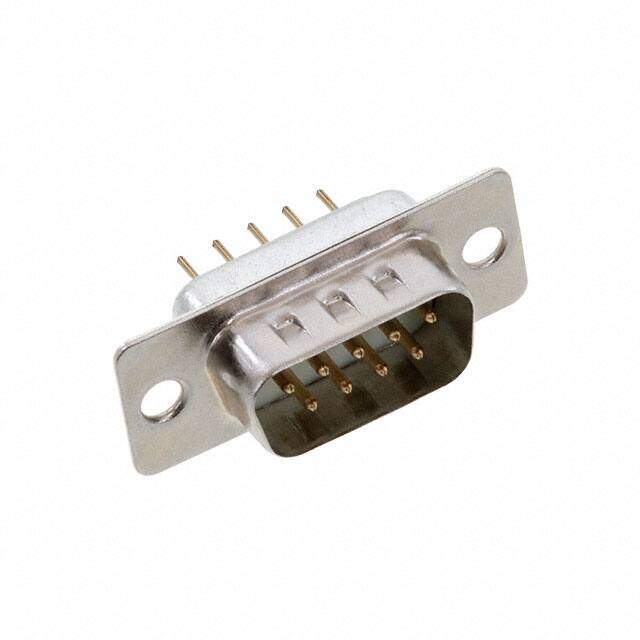

618009226221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
WR-DSUB MALE IDC CONNECTOR MALE,
PDF
/
Buying Options
Total Price: USD $5.97
Unit Price: USD $5.9664
≥1 USD $5.9664
≥10 USD $5.6584
≥100 USD $5.0248
≥500 USD $4.3824
≥1000 USD $3.7576
≥3000 USD $3.3528
Inventory: 126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Series WR-DSUB
Feature Feed Through, Grounding Indents, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Blue
Number of Rows 2
Gender Male
Voltage - Rated 250VAC
Contact Type Signal
Current Rating (Amps) 3A
Pitch 2.84mm
Orientation Straight
Depth 17.25mm
Current Rating 3A
Contact Finish Gold
Number of Contacts 9
Wire Gauge 28 AWG
Flange Feature Cable Side (4-40)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Dimensions
Length 30.8mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
