747912-2
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

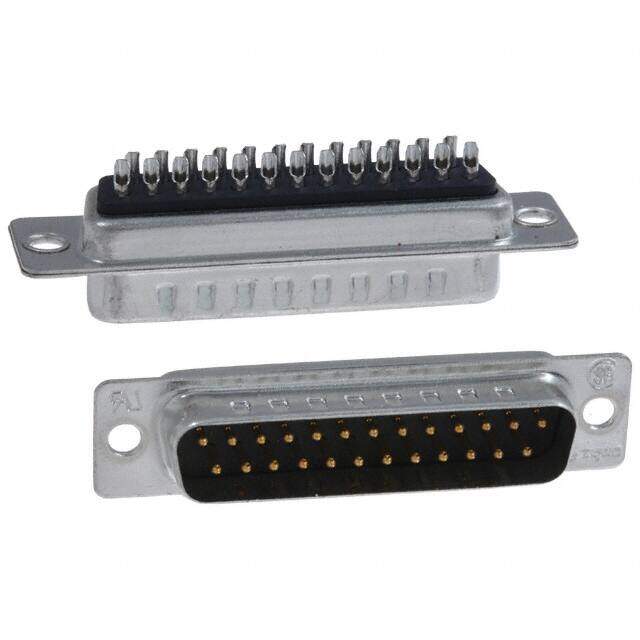

CONN D-SUB PLUG 25P STR SLDR CUP
PDF
/
Inventory: 7298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2004
Series AMPLIMITE HD-20
JESD-609 Code e0
Feature Grounding Indents
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Color Black
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 25
Orientation Straight
Depth 15.4mm
Current Rating 3A
Shell Finish TIN
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Body Breadth 0.493 inch
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 3A
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Wire/Cable Gauge 20 AWG
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Preloaded Yes
Max Supply Voltage (AC) 250V
Dimensions
Height 15.4mm
Length 53.01mm
Width 12.5mm
Contact Finish Thickness 8.00μin 0.203μm
Plating Thickness 8μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
