747904-4
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description

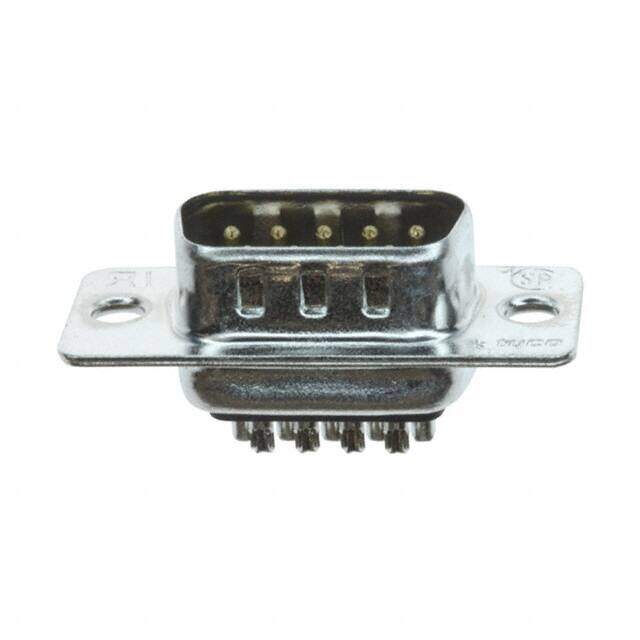

CONN DSUB PLUG 9POS STR SLDR CUP
PDF
/
Inventory: 4769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Blue Zinc Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2004
Series AMPLIMITE HD-20
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Color Black
Number of Rows 2
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 9
Orientation Straight
Depth 15.4mm
Current Rating 3A
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Rated Current (Signal) 3A
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Plating Zinc
Connector Style D-Sub
Number of Ports 1
Wire/Cable Gauge 20 AWG
Shell Size, Connector Layout 1 DE E
Preloaded Yes
Max Supply Voltage (AC) 250V
Dimensions
Length 30.8mm
Width 12.5mm
Contact Finish Thickness 8.00μin 0.203μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
