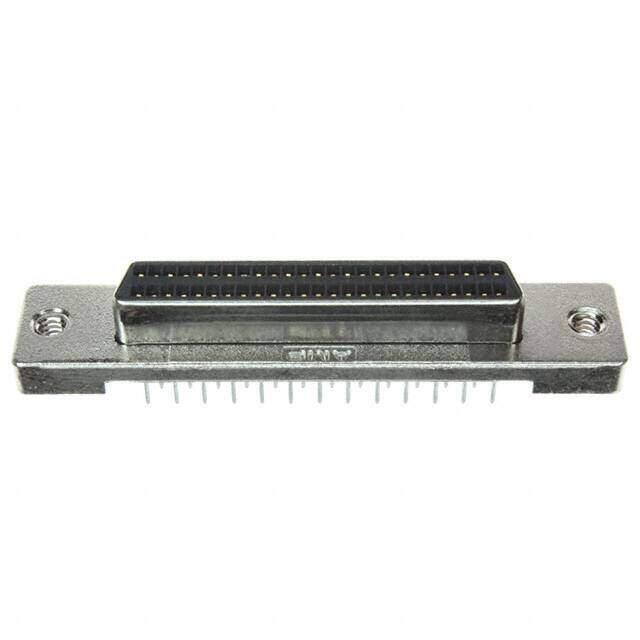

5749070-5 image
Favorite
5749070-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-TYPE RCPT 50POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $9.24
Unit Price: USD $9.24
≥1 USD $9.24
≥10 USD $9.0508
≥100 USD $8.81027
≥500 USD $8.475984
Inventory: 1561
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 10.31mm
Length 52.45mm

Technical

Mating Connector Lock Without
Max Supply Voltage (AC) 30V
Hole Diameter 3.18 mm
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Sealable No
Number of Ports 1
Connector Style D-Type
Plating Copper, Tin
Max Voltage Rating (AC) 30V
ELV Compliant
Flange Feature Housing/Shell (4-40)
Row Spacing 2.54 mm
Lead Length 3.175mm
Contact Finish Gold
Current Rating 1A
Depth 10.31mm
Orientation Vertical
Pitch 1.27mm
Contact Type Signal
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 50
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Shielded
Series AMPLIMITE .050 III
Published 2009
Packaging Tube
Operating Temperature -55°C~105°C

Physical

PCB Mount Retention With
Shell Material, Finish Steel, Nickel Plated
Dielectric Material Thermoplastic
Shell Material Steel
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 11 Weeks
