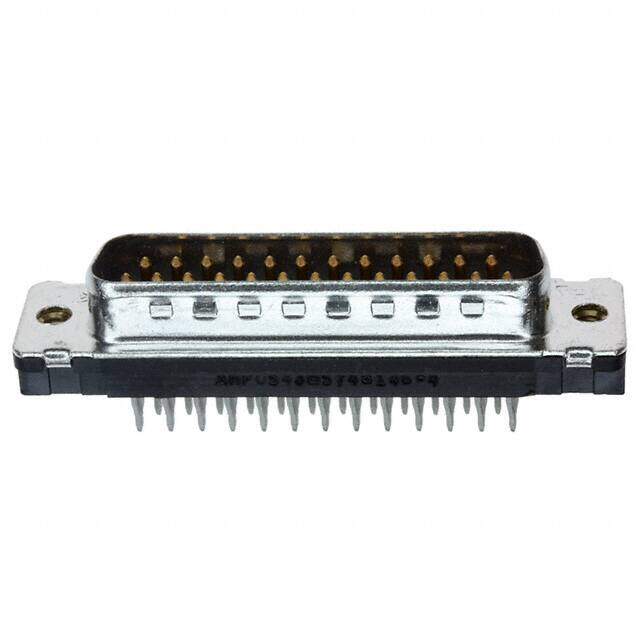

5748146-4 image
Favorite
5748146-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONN D-SUB PLUG 25POS VERT PRESS
PDF
/
Buying Options
Total Price: USD $18.04
Unit Price: USD $18.04
≥1 USD $18.04
≥10 USD $16.80184
Inventory: 130
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

PCB Thickness 2.36mm
Length 53.47mm

Technical

Mating Connector Lock With
Preloaded Yes
Hole Diameter 3.18 mm
Shell Size, Connector Layout 3 DB B
Sealable No
Number of Ports 1
Connector Style D-Sub
Plating Tin
ELV Compliant
Flange Feature Housing/Shell (4-40)
Row Spacing 2.8448 mm
Lead Length 5.7912mm
Contact Finish Gold
Depth 12.55mm
Orientation Vertical
Pitch 2.7432mm
Contact Type Signal
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Series AMPLIMITE HD-20
Published 1999
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Tin Plated
Housing Material Nylon
Shell Material Steel
Contact Shape Round
Mounting Type Through Hole
Mount Press Fit, Through Hole
Contact Material Copper Alloy

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 11 Weeks
