Category Connectors, Interconnects / D-Sub Connectors

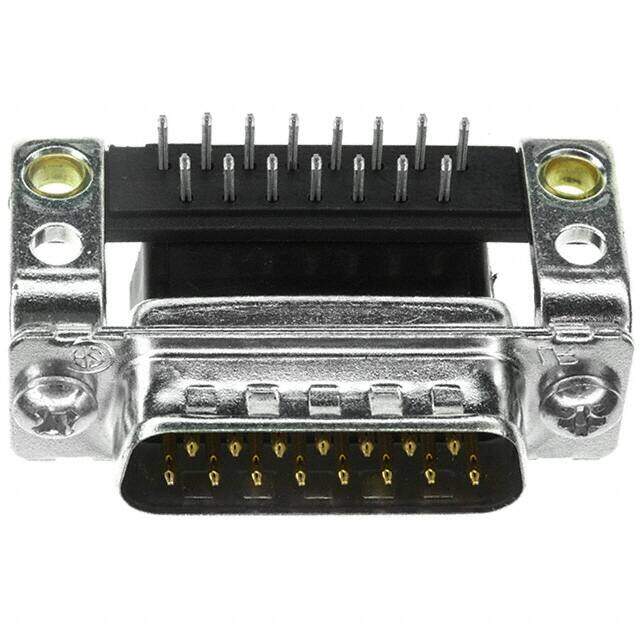

Description CONN D-SUB PLUG 15POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $22.73
Unit Price: USD $22.7304
≥1 USD $22.7304
≥10 USD $18.7616
≥100 USD $17.438432
≥500 USD $16.115554
≥1000 USD $15.995311
Inventory: 136
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)

Physical

Contact Material Brass
Mount Through Hole
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Shell Material, Finish Steel, Tin Plated
Housing Material Thermoplastic
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Shell Material Steel
Contact Shape Square
Mounting Type Through Hole, Right Angle

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

PCB Thickness 2.36mm
Length 39.14mm

Technical

Preloaded Yes
Backset Spacing 0.454 (11.53mm)
Hole Diameter 3.048 mm
Shell Size, Connector Layout 2 DA A
Sealable No
Number of Ports 1
Connector Style D-Sub
Plating Tin
ELV Compliant
Flange Feature Mating Side, Standard Screws
Row Spacing 2.8448 mm
Empty Shell NO
Lead Length 3.175mm
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 6A
Depth 23.24mm
Shielding Unshielded
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.7432mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Voltage - Rated 125V
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents, Mounting Brackets
Series AMPLIMITE HDP-20
Published 2011
Packaging Tray
