5745113-2
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

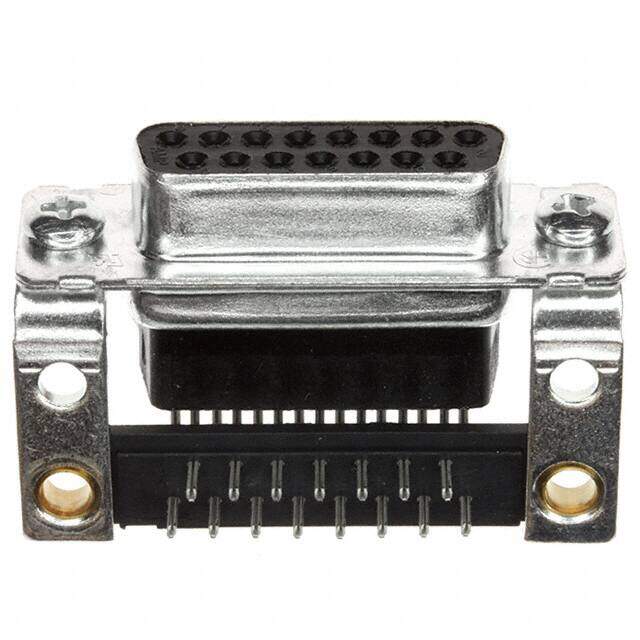

CONN D-SUB RCPT 15POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $15.05
Unit Price: USD $15.048
≥1 USD $15.048
≥10 USD $14.01664
Inventory: 399
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 2.36mm
Plating Thickness 760 nm
Length 39.14mm
Technical
Mating Connector Lock With
Preloaded Yes
Backset Spacing 0.545 (13.84mm)
Hole Diameter 3.048 mm
Shell Size, Connector Layout 2 DA A
Sealable No
Number of Ports 1
Connector Style D-Sub
Plating Tin
ELV Compliant
Flange Feature Mating Side, Standard Screws (4-40)
Row Spacing 2.8448 mm
Empty Shell NO
Lead Length 3.175mm
UL Flammability Code 94V-0
Contact Finish Gold
Shell Finish TIN
Current Rating 6A
Depth 26.23mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.7432mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 125V
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Brackets
Series AMPLIMITE HDP-20
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mounting Orientation Right Angle
Shell Material, Finish Steel, Tin Plated
Housing Material Nylon
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Shell Material Steel
Contact Shape Square
Package / Case Metal
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
