5-1393480-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

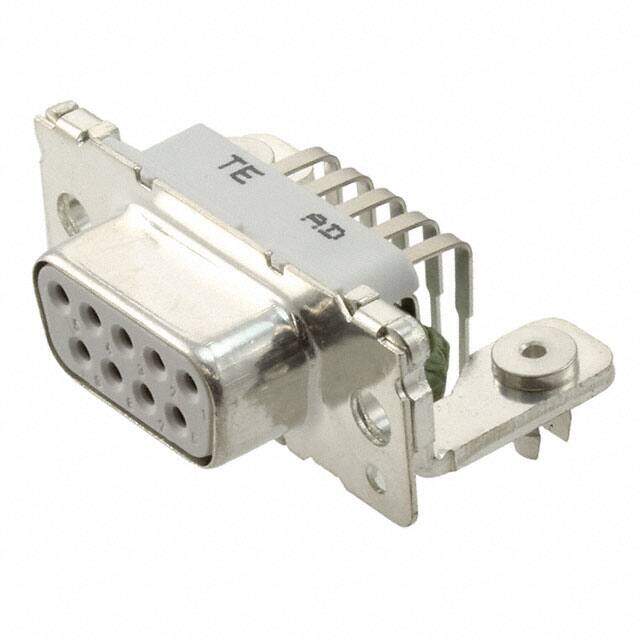

D-Sub Standard Connectors V23529B1221B209 SUB D 2
PDF
/
Buying Options
Total Price: USD $4.12
Unit Price: USD $4.1184
≥1 USD $4.1184
≥10 USD $3.60888
≥100 USD $3.514368
≥500 USD $3.438864
≥1000 USD $3.326488
Inventory: 880
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Round
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Housing Material Polybutylene
Shell Material, Finish Steel, Tin Plated
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series AMPLIMITE HD-20
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Gray
Number of Rows 2
Gender Female
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.74mm
Total Number of Contacts 9
Orientation Right Angle
Depth 21.3mm
Current Rating 2.2A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Housing Color Grey
Lead Length 3.2004mm
Empty Shell NO
Insulation Resistance 5000000000Ohm
Row Spacing 2.8448 mm
Flange Feature Housing/Shell (Unthreaded)
ELV Compliant
Plating Tin
Connector Style D-Sub
Number of Ports 1
Sealable No
Shell Size, Connector Layout 1 DE E
Hole Diameter 3.048 mm
Backset Spacing 0.371 (9.43mm)
Preloaded Yes
Mating Connector Lock Without
Dimensions
Length 31.19mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
