2-1734344-3
RoHS
/
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

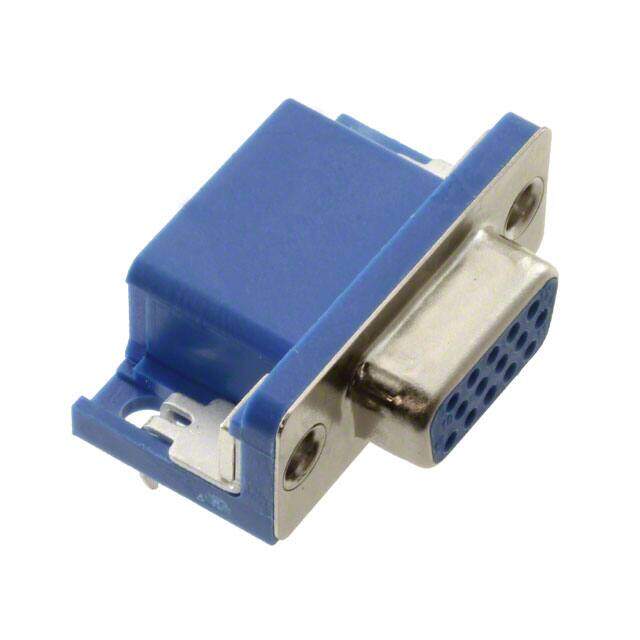

D-Sub Standard Connectors AMP HD22 15p Rcpt 30
PDF
/
Inventory: 5202
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case Metal
Contact Shape Round
Dielectric Material Polyamide (PA9T), Nylon 9T
Housing Material Thermoplastic
Shell Material, Finish Steel, Nickel Plated
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -55°C~130°C
Packaging Tray
Published 2008
Series AMPLIMITE HD-22
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Color Blue
Number of Rows 3
Gender Female
Voltage - Rated 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 15
Orientation Right Angle
Depth 22mm
Current Rating 2A
Contact Finish Gold
Approval Agency CSA, UL
UL Flammability Code 94V-0
Lead Length 3.2mm
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Plating Nickel
Connector Style D-Sub, High Density
Number of Ports 1
Shell Size, Connector Layout 1 DE E High Density
Hole Diameter 3.18 mm
Backset Spacing 0.350 (8.89mm)
Preloaded Yes
Dimensions
Length 30.8mm
Contact Finish Thickness 30.0μin 0.76μm
PCB Thickness 1.57mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
