1658610-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

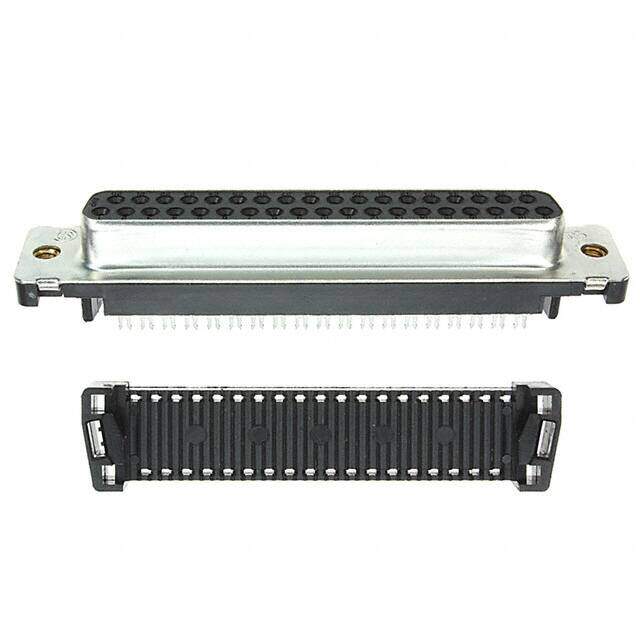

CONN D-SUB RCPT 37POS STR IDC
PDF
/
Buying Options
Total Price: USD $14.1
Unit Price: USD $14.0976
≥1 USD $14.0976
≥10 USD $13.8072
≥100 USD $13.44024
≥500 USD $12.779254
≥1000 USD $11.53071
≥3000 USD $11.457257
Inventory: 2500
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Phosphor Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Steel
Material Metal
Dielectric Material Thermoplastic
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 1998
Series AMPLIMITE HDF-20
JESD-609 Code e3
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 37
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 250V
HTS Code 8536.69.40.30
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.76mm
Total Number of Contacts 37
Orientation Right Angle
Shielding Shielded
Depth 12.59mm
Current Rating 1.25A
Shell Finish TIN
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Approval Agency CSA, UL
Body Breadth 0.496 inch
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 26-28 AWG, Stranded or Solid
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Max Voltage Rating (AC) 250V
Plating Tin
Dielectric Withstanding Voltage 500VAC V
Wire/Cable Type Ribbon
Connector Style D-Sub
Number of Ports 1
Sealable No
Shell Size, Connector Layout 4 DC C
Wire/Cable Diameter 970 μm
Contact Design PREASSEM CONN
Preloaded Yes
Max Supply Voltage (AC) 250V
Dimensions
Length 69.39mm
Width 18.61mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
