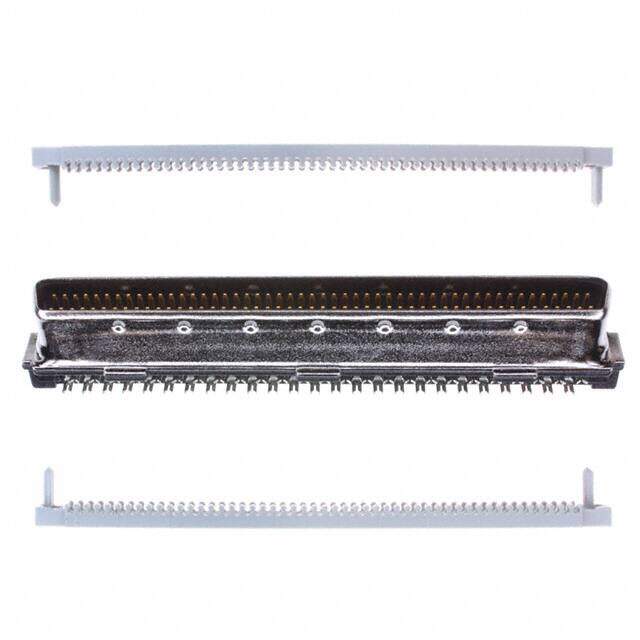

1-750913-9
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-TYPE PLUG 100POS STR IDC
PDF
/
Inventory: 8140
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Phosphor Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester
Shell Material, Finish Steel, Tin-Nickel Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series AMPLIMITE .050 III
JESD-609 Code e0
Feature Shielded, Terminating Cover
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Discrete Wire
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 100
Color Gray
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.27mm
Total Number of Contacts 100
Orientation Straight
Shielding Shielded
Depth 9.47mm
Current Rating 1A
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Rated Current (Signal) 1A
ELV Non-Compliant
Max Voltage Rating (AC) 30V
Plating Nickel, Tin
Dielectric Withstanding Voltage 500VAC V
Wire/Cable Type Round
Connector Style D-Type
Number of Ports 1
Sealable No
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Insulation Diameter 790 μm
Contact Design PREASSEM CONN
Preloaded Yes
Wire Size (Min) 30 AWG
Dimensions
Length 71.86mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
