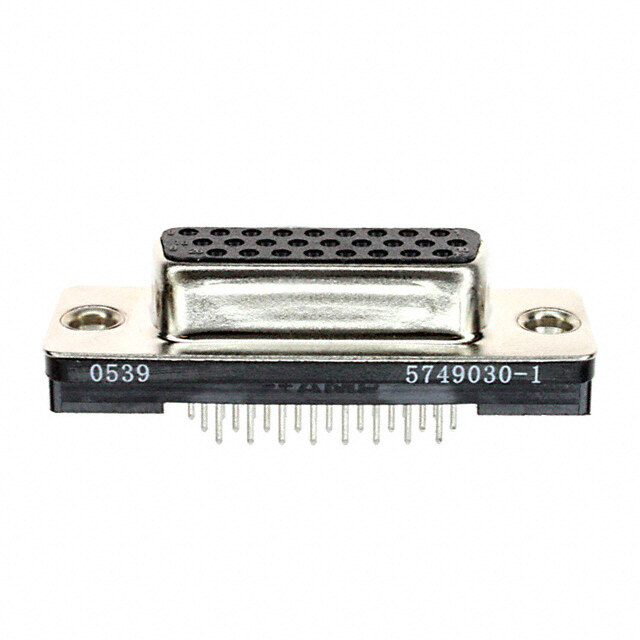

5749030-1
RoHS
/
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB HD RCPT 26P VERT SLDR
PDF
/
Buying Options
Total Price: USD $3.59
Unit Price: USD $3.590782
≥1 USD $3.590782
≥10 USD $3.162776
≥30 USD $2.908074
≥100 USD $2.420988
≥500 USD $2.301514
≥1000 USD $2.248998
Inventory: 5977
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
PCB Thickness 2.36mm
Plating Thickness 30μin
Length 39.2mm
Height 11.8mm
Technical
Max Supply Voltage (AC) 250V
Preloaded Yes
Current Rating (Max) 1.5A
Plating - Body Nickel
Mating Contact Row Spacing 0.078 inch
Contact Pattern STAGGERED
Number of Ports 1
Max Voltage Rating (AC) 250V
Shell Size 2/A
ELV Compliant
Contact Style RND PIN-SKT
Empty Shell NO
Lead Length 3.175mm
UL Flammability Code 94V-0
Contact Gender FEMALE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Approval Agency UL
Reliability COMMERCIAL
Current Rating 1.5A
Depth 12.5mm
Total Number of Contacts 26
Pitch 2.29mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
Additional Feature AMPLIMITE
Voltage - Rated 125V
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Connector Type Receptacle
Termination Solder
Number of Terminations 26
Pbfree Code yes
JESD-609 Code e3
Packaging Bulk
Physical
PCB Mounting Orientation Vertical
Body Material Metal
Housing Material PBT
Shell Material Steel
Contact Shape Round
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
