2761619
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description

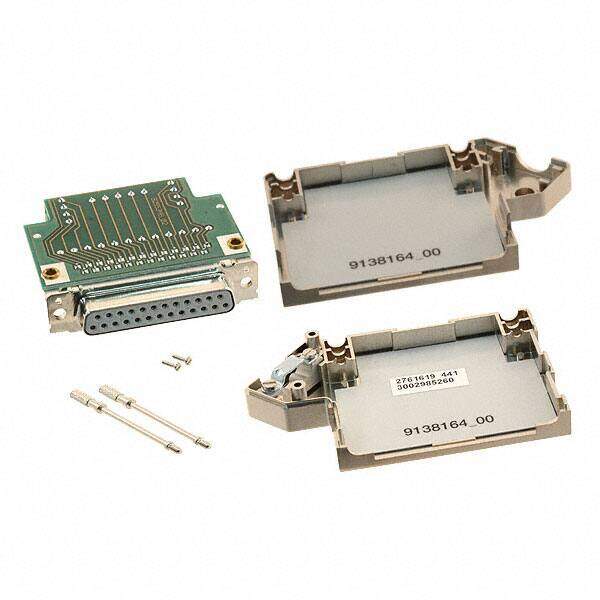

CONN D-SUB RCPT 25P STR TERM BLK
PDF
/
Buying Options
Total Price: USD $58.41
Unit Price: USD $58.4144
≥1 USD $58.4144
Inventory: 76
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Module
Material ABS
Dielectric Material Acrylonitrile Butadiene Styrene (ABS), Metal Plated
Weight 85.048569g
Body Material Metal
Technical
Operating Temperature -20°C~75°C
Packaging Bulk
Published 2001
Series SUBCON
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Terminal Block
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Voltage - Rated DC 60V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 100mA
Total Number of Contacts 25
Orientation Right Angle
Depth 16mm
Reach Compliance Code not_compliant
Current Rating 1A
Voltage - Rated AC 60V
Approval Agency UL
Empty Shell NO
Flange Feature Cable Side, Male Jackscrew (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 3 DB B
Dimensions
Length 4mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
