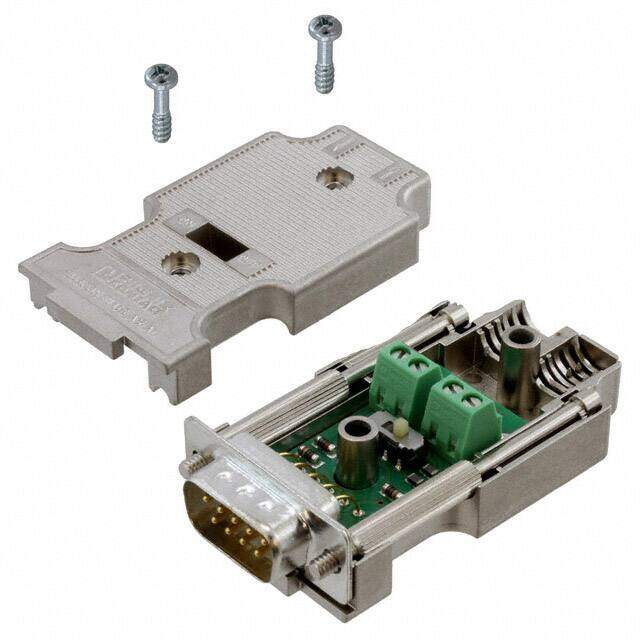

2744380
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS TERM BLK
PDF
/
Buying Options
Total Price: USD $48.84
Unit Price: USD $48.84
≥1 USD $48.84
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 31.5mm
Length 58.2mm
Technical
Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Cable Side, Male Jackscrew (4-40)
Operating Supply Voltage 60V
Empty Shell NO
Current Rating 1A
Reach Compliance Code unknown
Depth 17mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Terminal Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Shielded
Series SUBCON
Published 2007
Packaging Bulk
Operating Temperature -20°C~75°C
Physical
Housing Material Metal
Dielectric Material Acrylonitrile Butadiene Styrene (ABS), Metal Plated
Package / Case Module
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 4 Weeks
