2744377
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description

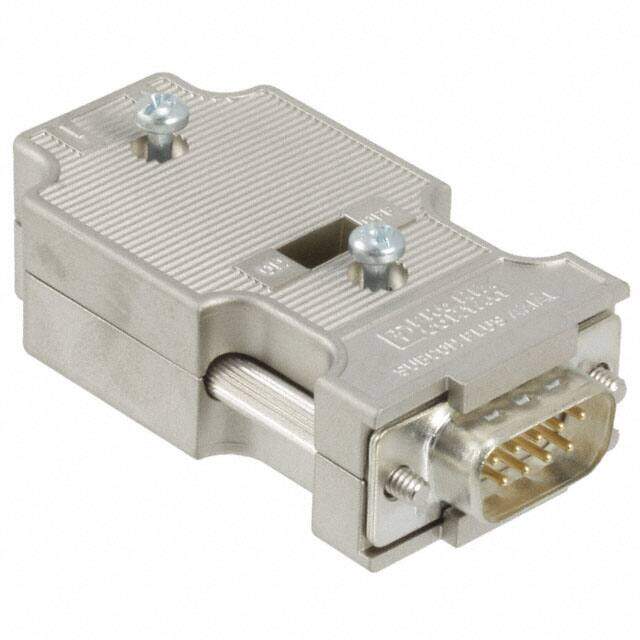

PHOENIX CONTACT 2744377. Standard D Sub Connector, Profibus Series, DE, Plug, 9 Contacts, Metal Body, Screw
PDF
/
Buying Options
Total Price: USD $52.27
Unit Price: USD $52.272
≥1 USD $52.272
≥10 USD $48.09024
≥100 USD $47.698288
Inventory: 14
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Free Hanging (In-Line)
Package / Case Module
Number of Pins 9
Material ABS
Dielectric Material Acrylonitrile Butadiene Styrene (ABS), Metal Plated
Housing Material Metal
Body Material Metal
Mount Cable, Free Hanging
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2005
Series SUBCON
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Terminal Block
Connector Type Plug, Male Pins
Number of Positions 9
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Number of Rows 2
Gender Male
Voltage - Rated 60V
Voltage - Rated DC 60V
Contact Type Signal
Current Rating (Amps) 1A
Orientation Straight
Depth 17mm
Current Rating 1A
Voltage - Rated AC 60V
Number of Contacts 9
Operating Supply Voltage 60V
Flange Feature Cable Side, Male Jackscrew (4-40)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E
Wire/Cable Diameter -8.4 mm
Supply Chain
Factory Lead Time 4 Weeks
Dimensions
Length 31.5mm
Width 58.2mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
