2708232
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

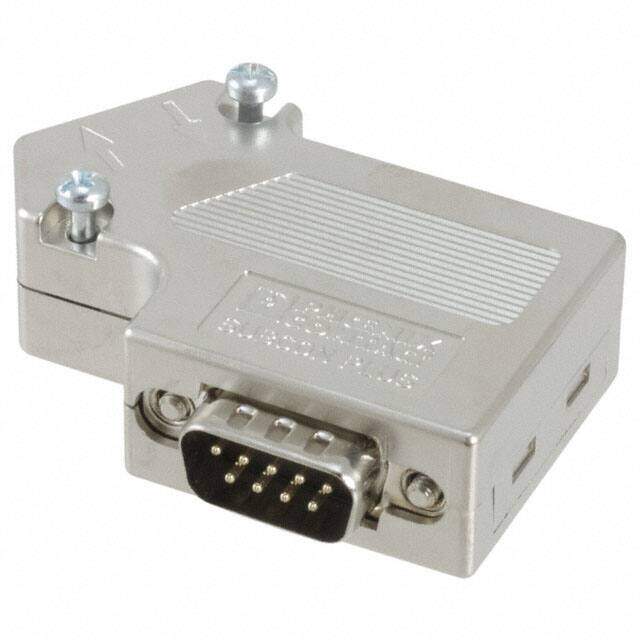

DIN Rail Terminal Blocks ANGLED PROFIBUS CONN WITH SCREW TERMINALS
PDF
/
Buying Options
Total Price: USD $48.68
Unit Price: USD $48.6816
≥1 USD $48.6816
Inventory: 89
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 16.6mm
Length 58mm
Height 39.4mm
Technical
Wire/Cable Diameter -8.4 mm
Shell Size, Connector Layout 1 DE E
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 16 AWG
Connector Style D-Sub
Flange Feature Cable Side, Male Jackscrew (4-40)
Number of Contacts 9
Voltage - Rated AC 60V
Current Rating 1A
Depth 16.6mm
Orientation Right Angle
Pitch 2.77mm
Current Rating (Amps) 1A
Contact Type Signal
Voltage - Rated 60V
Gender Male
Number of Rows 2
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Number of Positions 9
Connector Type Plug, Male Pins
Termination Terminal Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Shielded
Series SUBCON
Published 2007
Packaging Bulk
Operating Temperature -20°C~75°C
Physical
Weight 39.999986g
Housing Material Metal
Dielectric Material Acrylonitrile Butadiene Styrene (ABS), Metal Plated
Material ABS
Number of Pins 9
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
