RoHS
RoHS RoHS compliant
Package Axial
Category Connectors, Interconnects / D-Sub Connectors

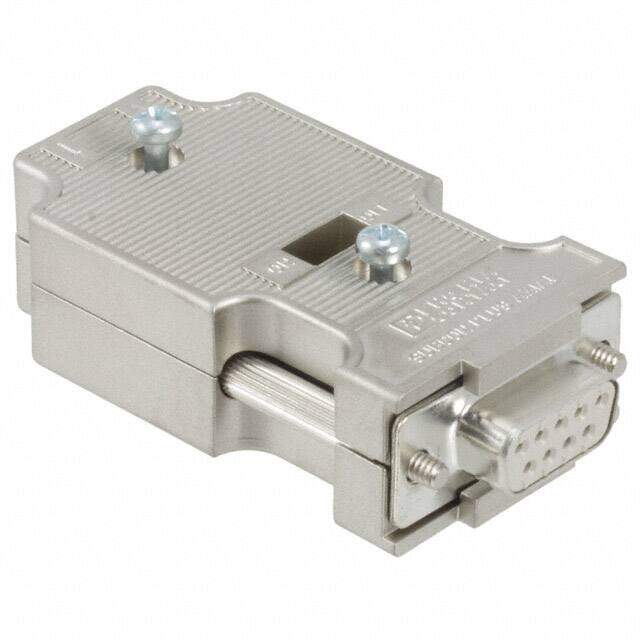

Description D-Sub Standard Connectors SUBCON-PLUS-CAN/AX
PDF
/
Buying Options
Total Price: USD $47.7
Unit Price: USD $47.696
≥1 USD $47.696
Inventory: 20
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP40
RoHS Status RoHS Compliant

Dimensions

Width 31.5mm
Length 58.2mm

Technical

Shell Size, Connector Layout 1 DE E
Connector Style D-Sub
Flange Feature Cable Side, Male Jackscrew (4-40)
Empty Shell NO
Current Rating 1A
Reach Compliance Code not_compliant
Depth 17mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 60V
Gender Female
Number of Rows 2
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Terminal Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Shielded
Series SUBCON
Published 2011
Packaging Bulk
Operating Temperature -20°C~75°C

Physical

Housing Material Metal
Dielectric Material Acrylonitrile Butadiene Styrene (ABS), Metal Plated
Package / Case Axial
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
