1690008
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

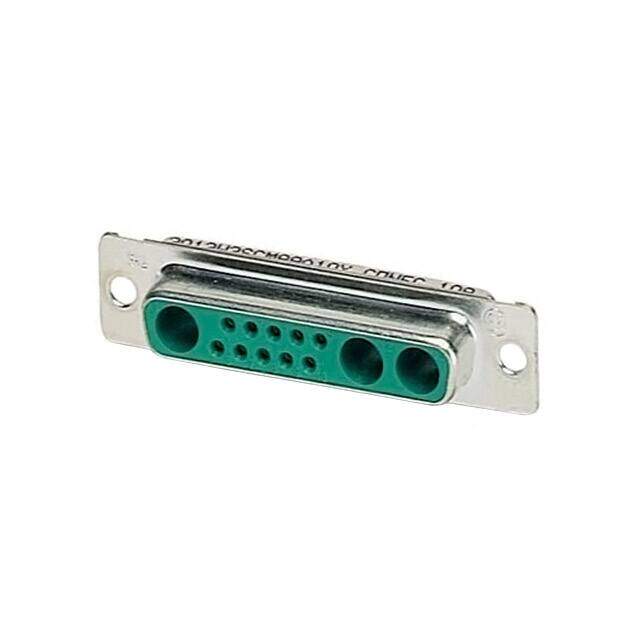

D-Sub Mixed Contact Connectors VS-25-BU-DSUB-3P-10S
PDF
/
Buying Options
Total Price: USD $18.25
Unit Price: USD $18.252536
≥1 USD $18.252536
≥10 USD $17.219379
≥100 USD $16.244688
≥500 USD $15.325179
≥1000 USD $14.457715
Inventory: 9526
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Contact Finish Gold
Current Rating 5A
Total Number of Contacts 13
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 250V
Number of Positions 13 (10 + 3 Coax or Power)
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Weight 10.119986g
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Number of Pins 10
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
