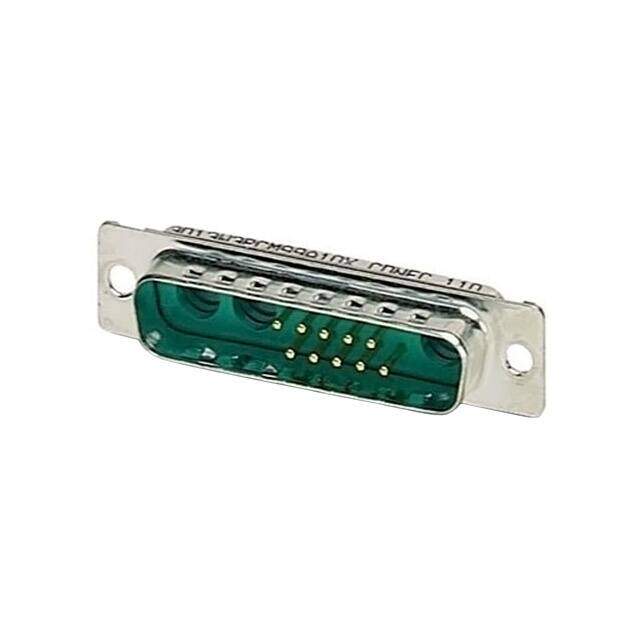

1689996 image
Favorite
1689996 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors VS-25-ST-DSUB-3P-10S
PDF
/
Inventory: 1245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Insulation Insulated
Shell Size, Connector Layout 3 DB B - 13C3 13W3
Connector Style D-Sub, Combo
Plating Chromate
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 5A
Total Number of Contacts 13
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Signal and Coax or Power (Not Included)
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 250V
Gender Male
Number of Rows 2
Number of Positions 13 (10 + 3 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
JESD-609 Code e4
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Weight 8.890014g
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
