1689909
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

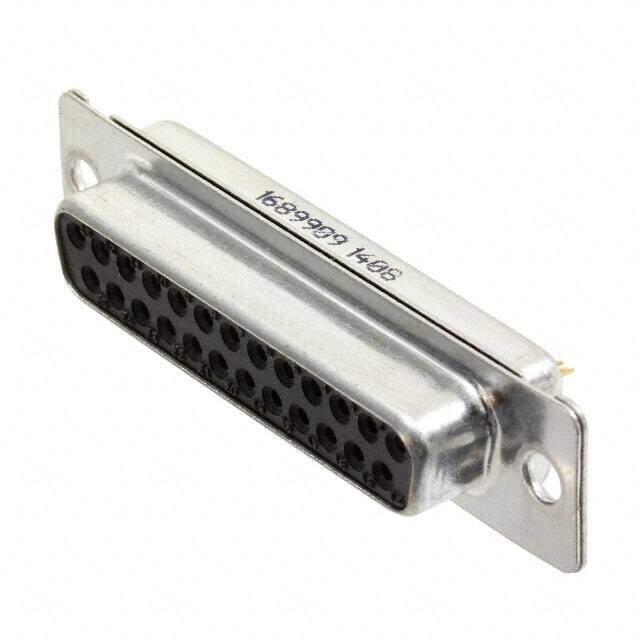

D-Sub Standard Connectors VS-25-BU-DSUB-EG
PDF
/
Buying Options
Total Price: USD $9.34
Unit Price: USD $9.3368
≥1 USD $9.3368
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Free Hanging (In-Line)
Shell Material Steel
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Weight 12.340009g
Shell Material, Finish Steel, Yellow Chromate Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2003
Series PLUSCON
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Female
Voltage - Rated 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 25
Reach Compliance Code unknown
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 3 DB B
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
