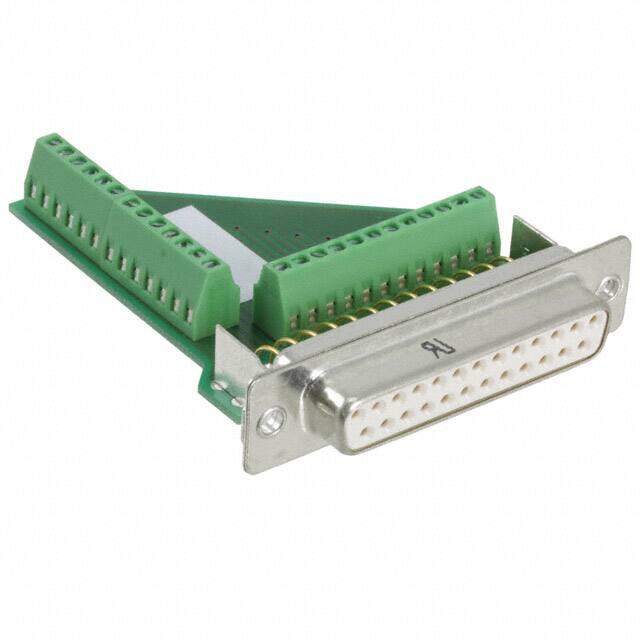

1689776
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 25POS PNL MNT
PDF
/
Buying Options
Total Price: USD $40.02
Unit Price: USD $40.0224
≥1 USD $40.0224
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Panel Mount
Package / Case Module
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Housing Material PBT
Weight 28.470009g
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2003
Series PLUSCON
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Terminal Block
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Female
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 25
Orientation Right Angle
Ingress Protection IP20
Depth 55.8mm
Reach Compliance Code unknown
Current Rating 5A
Contact Finish Gold
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 3 DB B
Dimensions
Length 53.9mm
Width 12.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
