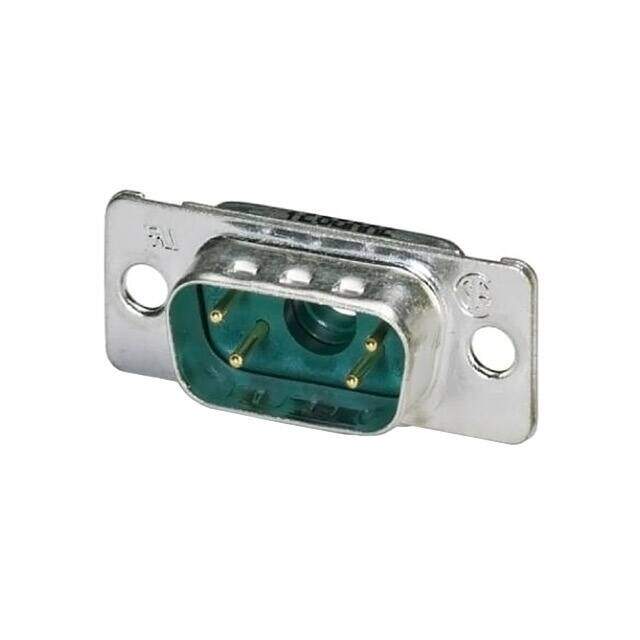

1689006 image
Favorite
1689006 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Mixed Contact Connectors VS-09-ST-DSUB-1P-4S
PDF
/
Inventory: 1126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Shell Size, Connector Layout 1 DE E - 5W1
Connector Style D-Sub, Combo
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Finish Gold
Current Rating 5A
Reach Compliance Code not_compliant
Contact Type Signal and Coax or Power (Not Included)
Voltage - Rated 250V
Number of Rows 2
Number of Positions 5 (4 + 1 Coax or Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel, Yellow Chromate Plated
Weight 4.700011g
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Number of Pins 5
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
