1688900
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

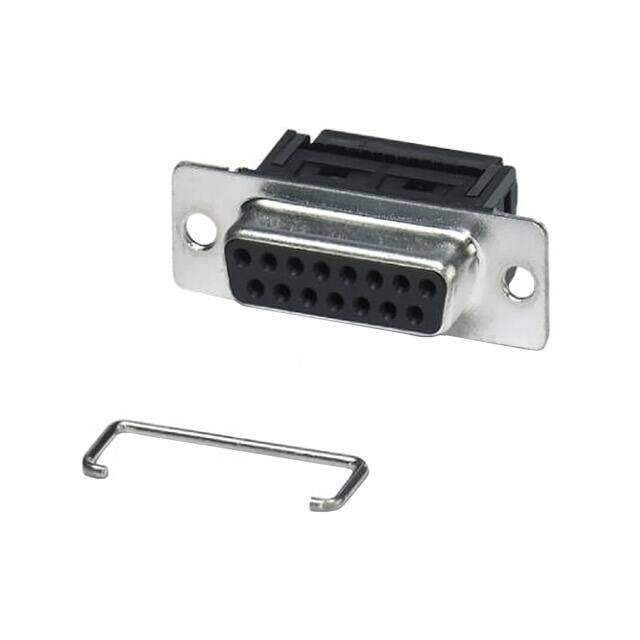

D-Sub Standard Connectors VS-15-BU-DSUB-FK 15P FEMALE CONTACT
PDF
/
Inventory: 5415
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 2 DA A
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Contact Finish Gold
Current Rating 5A
Contact Type Signal
Voltage - Rated 125V
Gender Female
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series PLUSCON
Published 2003
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
