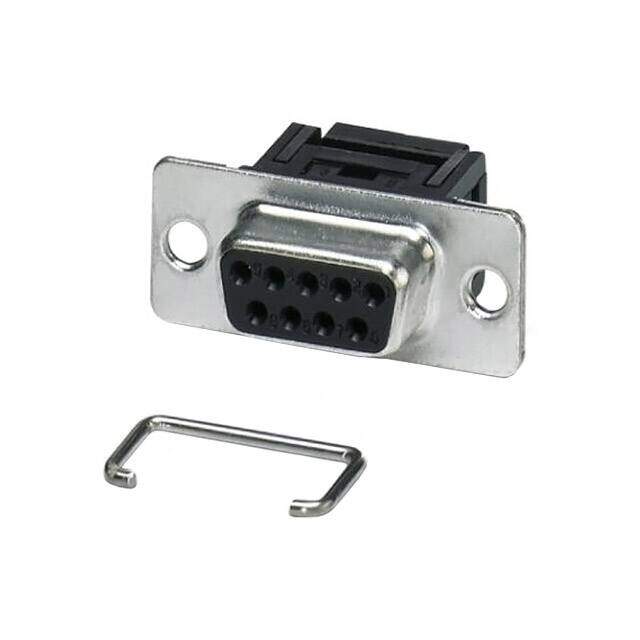

1688829 image
Favorite
1688829 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors VS-09-BU-DSUB-FK 9P FEMALE CONTACT
PDF
/
Buying Options
Total Price: USD $14.89
Unit Price: USD $14.893616
≥1 USD $14.893616
≥10 USD $14.050583
≥100 USD $13.255275
≥500 USD $12.504976
≥1000 USD $11.797142
Inventory: 5309
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyester, Glass Filled
Housing Material Glass
Shell Material, Finish Steel, Yellow Chromate Plated

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2014
JESD-609 Code e4
Feature Feed Through, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, Ribbon Cable
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Female
Voltage - Rated 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A
Total Number of Contacts 9
Orientation Straight
Depth 23.2mm
Reach Compliance Code unknown
Current Rating 5A
Contact Finish Gold
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Shell Size, Connector Layout 1 DE E

Dimensions

Length 31.19mm
Width 12.93mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
